Hand hold type

Y8 pneumatic rock drill

Model Number: Y8
Weight: 8KG
Useage: for small hole drilling
Drill dia: 20~24(mm)
Product description: Model Y8 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in ro
INQUIRY Email Whatsapp

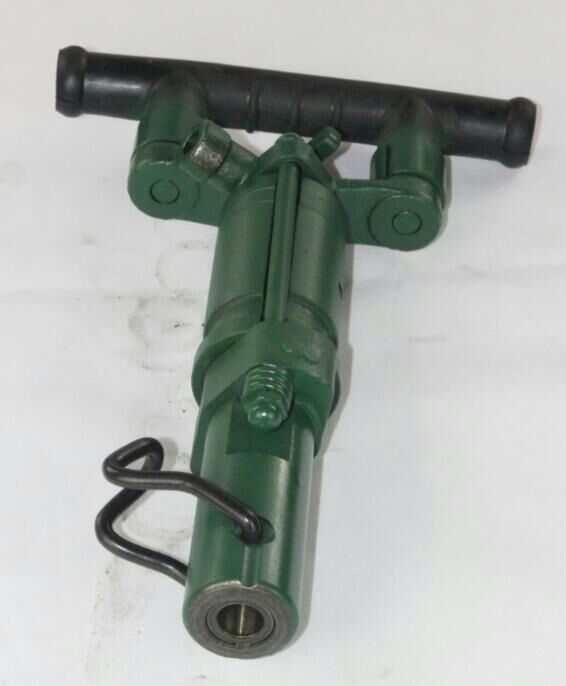

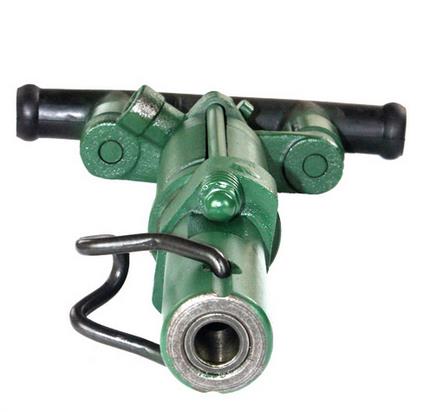

Y8 hand-held rock drill

Model Y8 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite.

Y8 use small taper drill rod with taper chisel bit, diameter 17-22 mm, and use plug hole integral steel also as for stone working,
stone trimming, and 2nd splitting blocks.

No	Item	Data
1	Type	Y8
2	Weight	8kg
3	Length	428 (mm)
4	Working pressure	0.4~0.63 (Mpa)
5	Impact frequency	≥51 (Hz)
6	Air consumption	≤9 (L/s)
7	Air pipe inner dia	φ13 (mm)
8	Drill bit dia	φ20-30 (mm)
