Small tools have great power-Manual Rock Splitter (Stone Wedge and Shim Set)

Do you know the most primitive way to split stones?The manual rock splitter, also known as a stone splitter, wedge set, or in some places called “bull” (meaning powerful), is a traditional tool used to split stone without blasting. It’s simple to use, low in cost, and effective in splitting stone quickly with less effort and less waste.

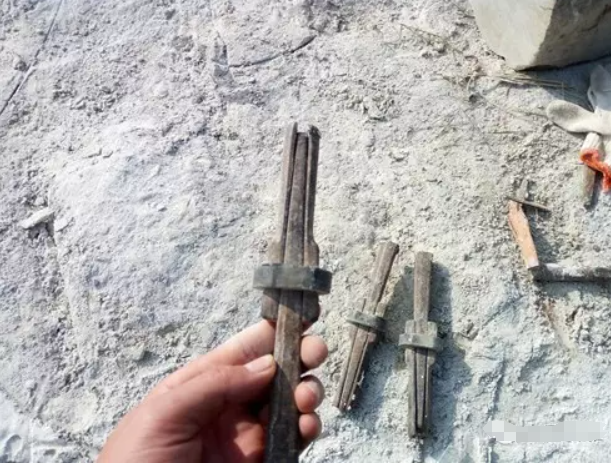

1. Components

A typical manual rock splitter includes:

• Center wedge: The middle part that takes hammer hits.

• Two outer wedges: Tapered pieces placed on both sides of the center wedge.

• Optional tightening sleeve: Used in some designs to make the wedges more stable and effective.

14-38mm hand splitter shim

High Quality Hand Rubber Clamp Rock Mining Shims And Wedges ...

24mm stone splitting wedge

Wedges and shims, also known as plugs and wedges, feather an...

rock cracking tools stone

rock cracking tools stone splitting wedges also known as plu...

2. Working Principle

The splitter works by applying static force inside a drilled hole. The process:

1. Drill a hole in the rock using a rock drill;

2. Insert the wedge set into the hole (outer wedges + center wedge);

3. Hit the center wedge with a hammer;

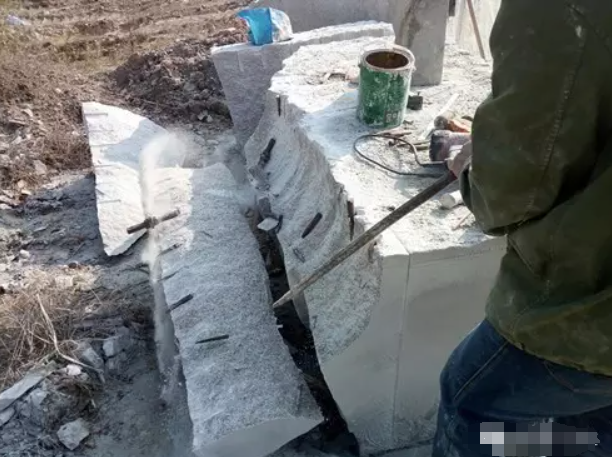

4. The force spreads sideways, creating cracks and splitting the rock in the desired direction.

3. How to Use

1. Mark the line: Draw a line where you want to split the stone. Leave some space outside the line.

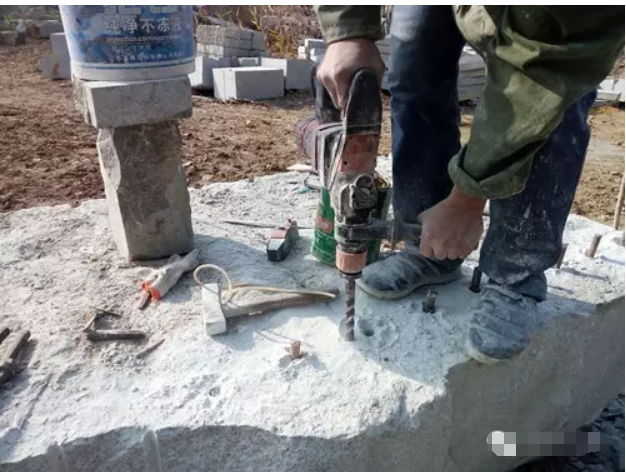

2. Drill holes: Use an impact drill to make holes in a straight line along the mark.



3. Clean the holes: Remove any dust or debris inside the holes.

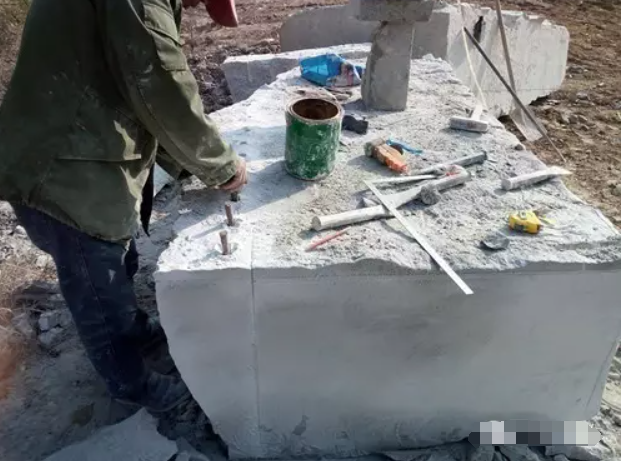

4. Insert the wedges: You can place the two outer wedges first, then the center wedge, or insert all together.

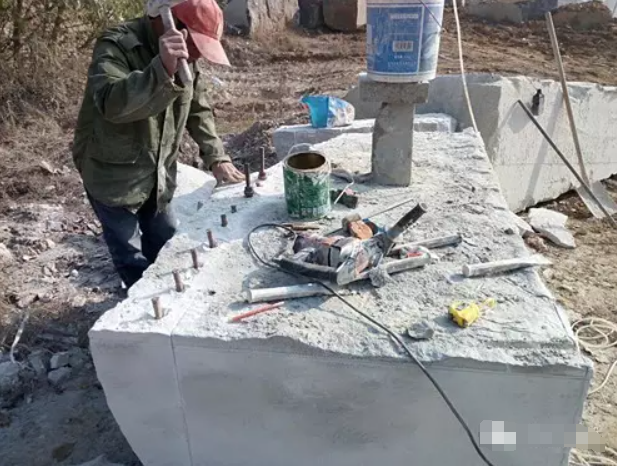

5. Hammer the wedges: Hit the center wedge in order, one by one, until the stone cracks.



6. Repeat if needed: If the stone doesn’t split well the first time, drill new holes and try again.



4. Tips for Better Results

• Use the same force each time you hit, don’t hammer too hard;

• Most stone types split well, but results may vary;

• If the stone cracks but doesn’t separate cleanly, just repeat the process on a different line.

5. Manual vs Hydraulic Splitters

Manual rock splitters are simple, cheap, and safe — no explosives needed. They’re easy to learn and perfect for small jobs or detailed work.

But in modern mining, many people now use hydraulic splitters. These machines include a power station and a splitting cylinder. The machine uses high-pressure oil to push a piston and create a strong splitting force — working in the same way as the manual wedge but with much more power and speed.

If you need other useful stone splitters, please contact us. We can provide Darda c12 splitter
