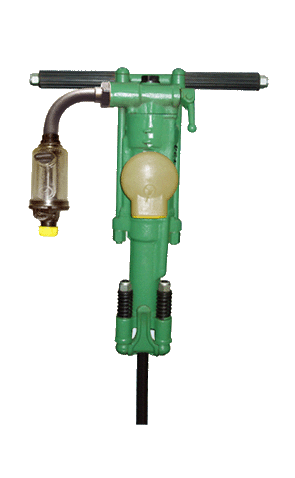

Hand hold type

  • Hand Held Rock Drill
Hand Held Rock Drill

Hand Held Rock Drill

  • Model Number:Y6 Y8 Y20 Y24 Y26 YH24
  • Weight :8-24(KG)
  • Max.drilling depth:5M
  • Feature:High Drilling Efficiency
  • Product description: The Series of pneumatic rock drills are mainly used in mines,railway,water irrigation works and quarrying works and quarrying works to drill hole or plug holes.It is suitable for wet or dry drilling
  • INQUIRY Email Whatsapp

The Series of  pneumatic rock drills are mainly used in mines,railway,water irrigation works and quarrying works and quarrying works to drill hole or plug holes.It is suitable for wet or dry drilling in all kinds of rocks.

Hand Held Rock Drill Y6 Y8 Y20 Y24 Y26 YH24
Weight (kg) 6 8 18 24 26 24
Air consumption (L/s) ≤9.5 9.5 25 55 ≤47 55
Drill hole diameter (mm) 20 20-24 34-42 34-42 34-42 34-42
Max.drilling depth (m) 0.5 0.5 3 3 5 5
Shank (mm) 15X88 22x108 22x108

22x108

22x108 22x108

Air-leg  Rock Drill YT19A Y20LY YT24 YT27 YT28 YT29A
Weight (kg) 18 18 24 24 26 26.5
Air consumption (L/s) 28 ≤25 ≤67 ≤85 ≤81 ≤65
Drill hole diameter (mm) 34-42 34-42 34-42 34-42 34-42 34-45
Max.drilling depth (m) 3 3 5 5 5 5
Shank (mm) 22x108 22x108 22x108

22x108

22x108 22x108

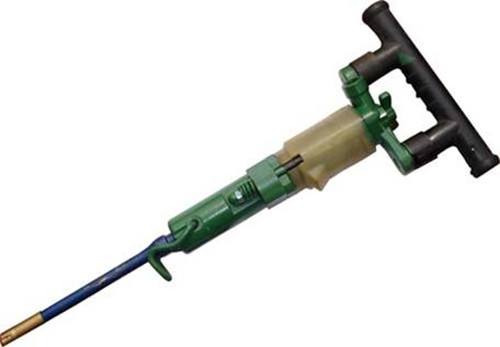

Y6 Hand Held Rock Drill

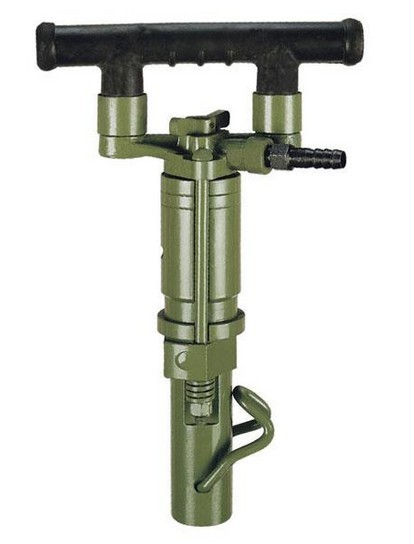

Y8 Hand Held Rock Drill

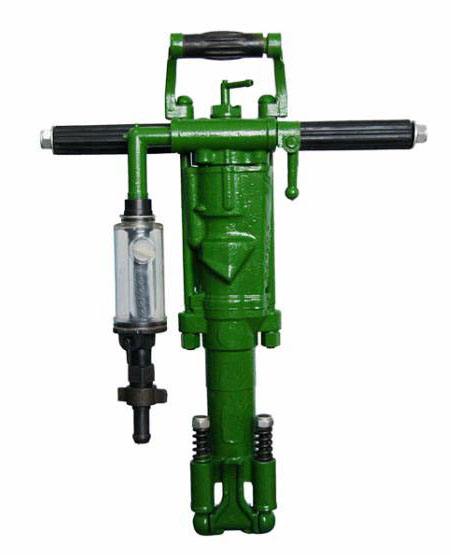

Y20 Hand Held Rock Drill

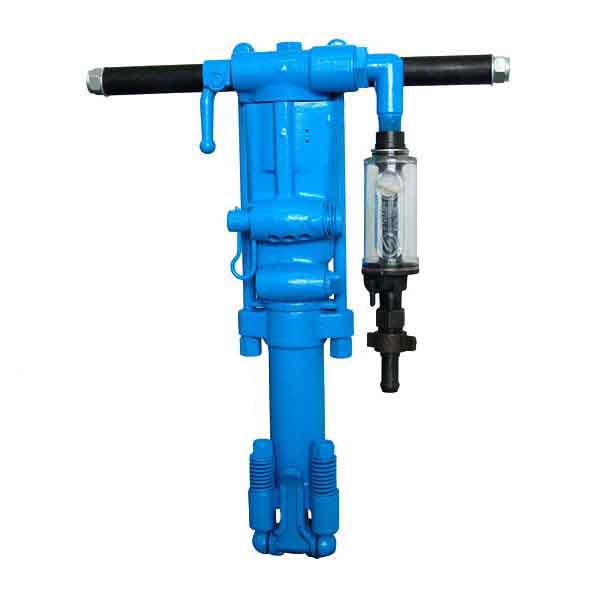

Y24 Hand Held Rock Drill

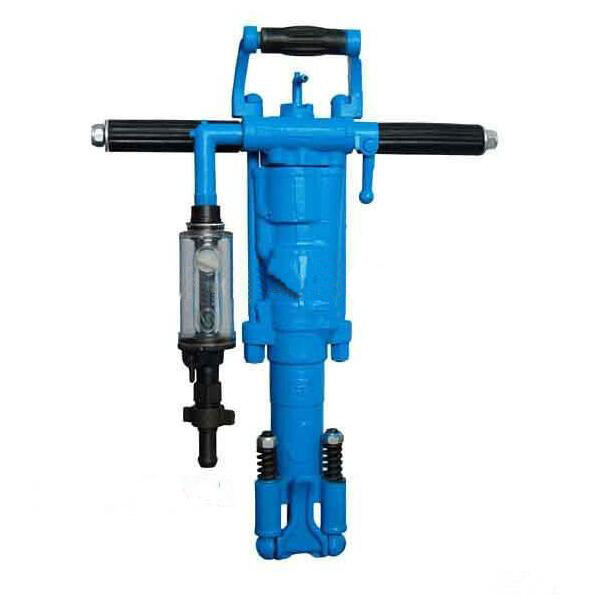

Y26 Hand Held Rock Drill

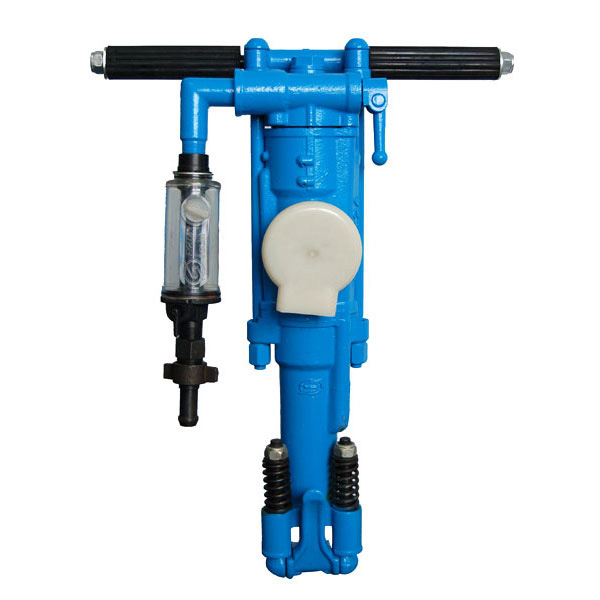

YH24 Hand Held Rock Drill
