Hand hold type

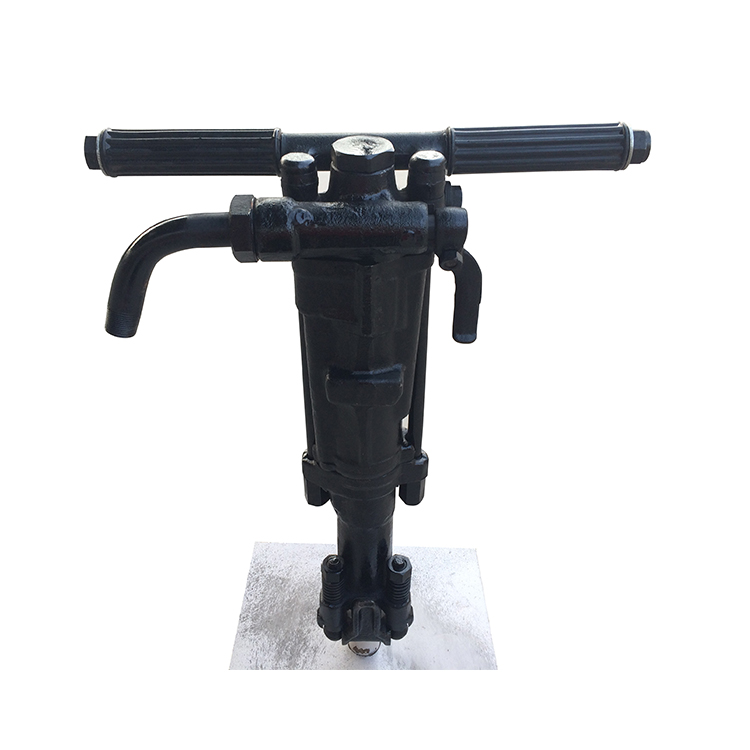

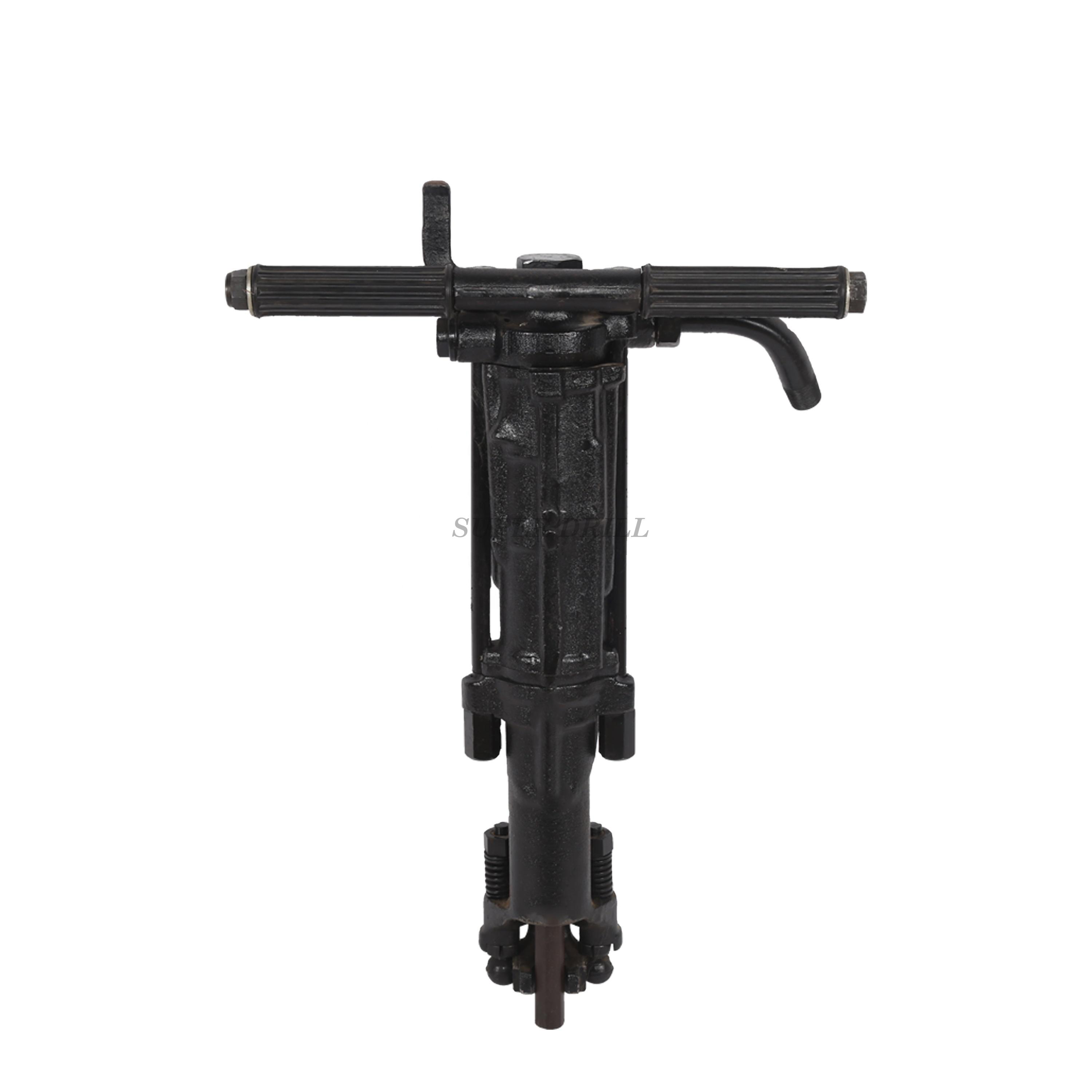

TY24C portable small pneumatic hand-held rock drill

Model Number: TY24C
Type: rock drill
Drilling Depth: Max.5m
weight: 27kg
Product description: TY24C rock drill is a portable, small pneumatic hand-held rock drill. Its design and construction are based on safe and fuel-saving technology. It is suitable for secondary blasting operation, mining
INQUIRY Email Whatsapp

TY24C rock drill

TY24C rock drill is a portable, small pneumatic hand-held rock drill. Its design and construction are based on safe and fuel-saving technology. It is suitable for secondary blasting operation, mining and tunneling, etc.

weight	27KG
length	610MM
Cylinder diameter	66.7MM
Piston stroke	68MM
Air consumption	2.7minute (m³/min)
Shank diameter	22*108 MM
Work pressure	0.5-0.63Mpa
Suitable drilling diameter	32-46MM
Suitable drilling depth	5M
Trachea inner diameter	19MM
