Grinding Equipment

  • Portable Pneumatic Integral steel  grinder
  • Portable Pneumatic Integral steel  grinder
Portable Pneumatic Integral steel  grinderPortable Pneumatic Integral steel  grinder

Portable Pneumatic Integral steel grinder

  • Portable version weight : 37 kg
  • Grinder thickness : 22 mm
  • Abrasive grinder diameter : 152 mm
  • Sharpening radius : 125 mm
  • Product description: HP2 Pneumatic Integral Steel Grinder is a milling machine surface grinding, This pneumatic machine is designed for grinding the chisel bits and integral drill rods. Your worn bit or rod can be reused
  • INQUIRY Email Whatsapp

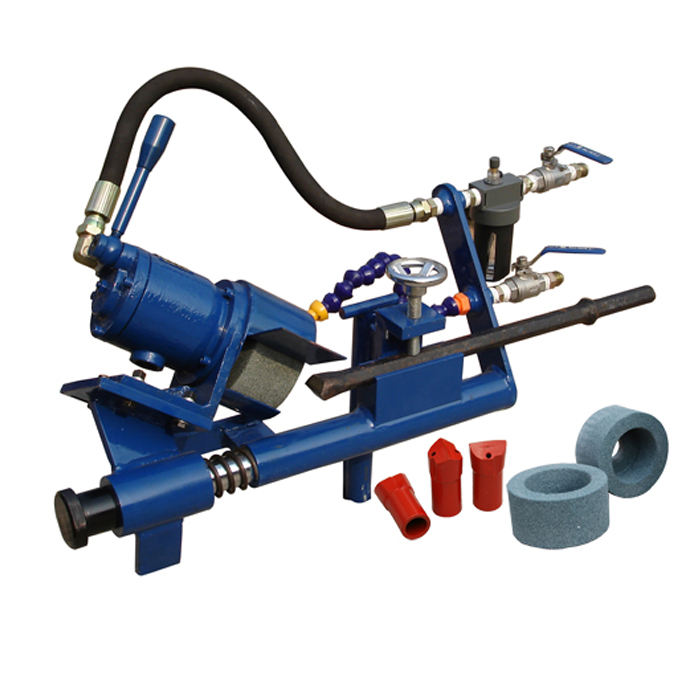

Superdrill HP2 Pneumatic Integral steel  grinder

Pneumatic Integral steel grinder is a milling machine surface grinding, capable for re-grinding blunted drilling steel integral bits carbide at an angle of 110 degrees, since this Integral Drill Steel Grinder is subjected for arduous working conditions in the Mines, Quarries. The Grinder is now developed with specialized design and mounted on Chisel bit type Integral Drill Steel Rods, possessing high design and mounted on Drill Steel Rods, possessing high strength balance and easy to transport and simple to setup.

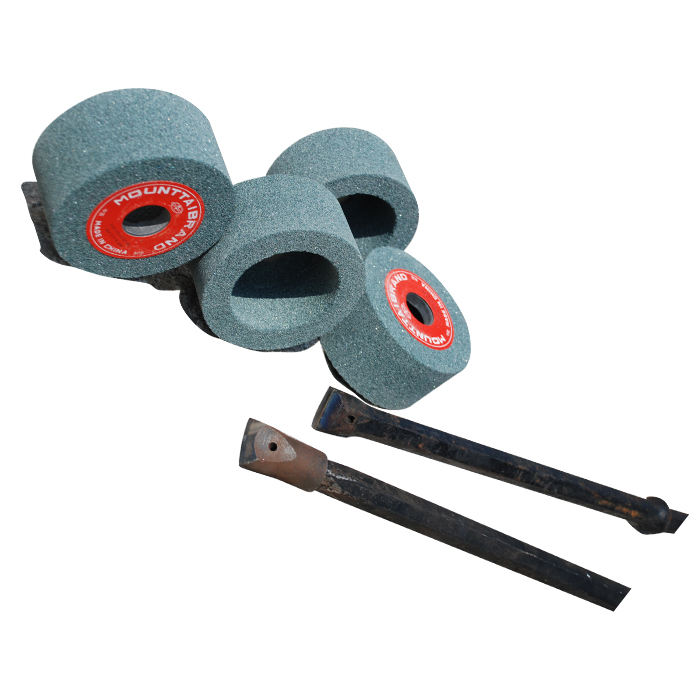

Integral steel&chisel bits grinder


Integral Drill rod Grinder Technical Parameters

Rotation speed 3500 RPM max
Motor power HP2
Sharpening angle 110°
Sharpening radius 125 mm
Operating pressure insufficient 6.0 bar
Air consumption at 6 bar 1.5 mc/min
Abrasive grinder diameter 152 mm
Grinder height 70 mm
Grinder thickness 22 mm
Grinder hole(diameter) 32 mm
Bench version weight 36 kg
Portable version weight 37 kg
