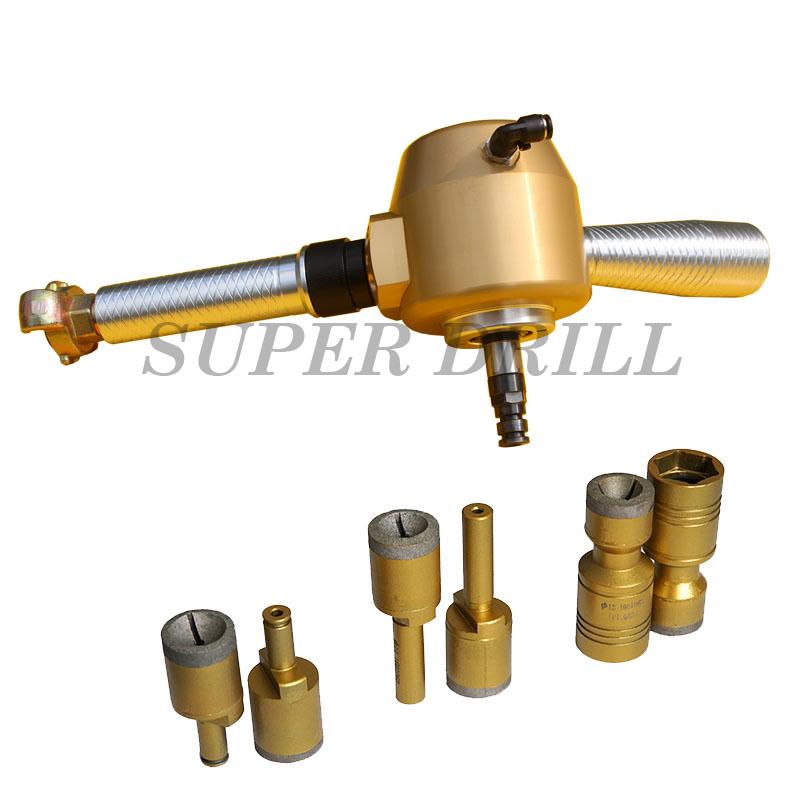

Hand-held pneumatic button bit grinder for button grinding

The SPD09 Handheld button bit grinder is a high-performance, pneumatic drill bit tool that may be used for threaded, tapered, and DTH hammer bits. This is portable and simple to use for performing grinding tasks

Leading the technological evolution of button bit grinding equipment is our aim. Air hand-held Button bit grinder machine (CME button bit grinder,pneumatic button bit grinder) Grinding machine for button bits, grinding pins, Hexagon grinding cup for drill bit, grinding carbide, button bit, DTH bit, tungsten carbide, air flush, water flush, button bit grinder is used for grinding carbide on button bits such as DTH-button bits, and top hammer percussive bits.

Model	SPD09
Air Pressure	5-7 bar (72-100psi)
Air Consumption, max	35L/S, 2m/2min
Water flushing pressure, max	4 bar(Psi)
Ladling speed	22000r/min
Air hole diameter	19mm
Water hole diameter	6mm
For the size of button bits	6-25mm

Type	For button diameter
KING	7mm-20mm
SANDVIK	7mm-20mm
ATLAS	7mm-20mm
CME	7mm-20mm

The Button Bits Grinder's advantage is:
1. Simple operation: It is simple to use.
2. Minimal air usage enables grinding with less compressed air. preserving fuel.
3. The quick chuck is appropriate for a variety of grinding cup types.
4. Handheld, lightweight, and portable.
