Button bit Grinder

  • Button bit grinding cups
  • Button bit grinding cups
  • Button bit grinding cups
Button bit grinding cupsButton bit grinding cupsButton bit grinding cups

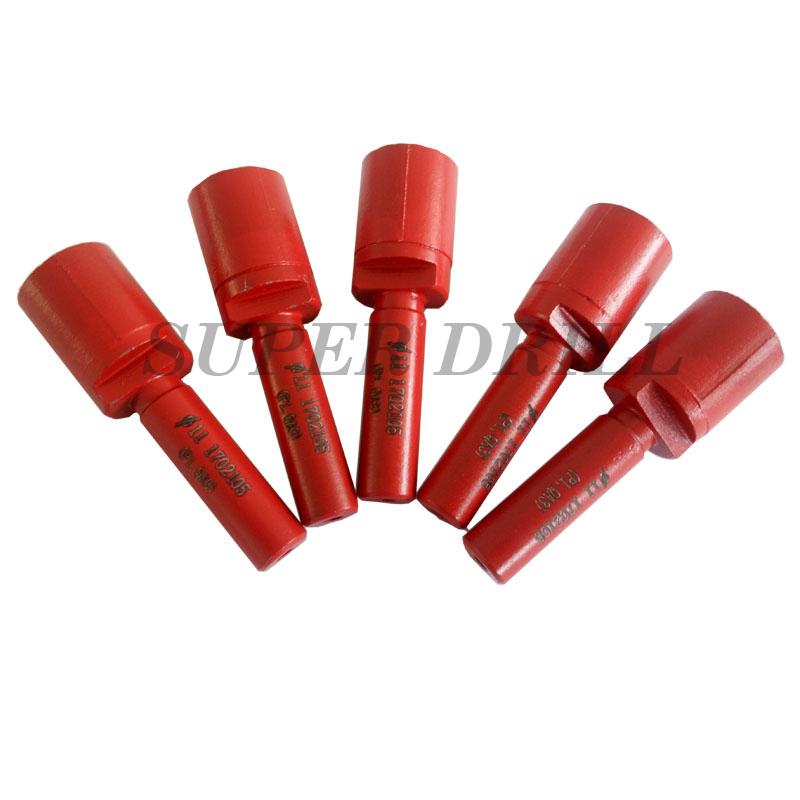

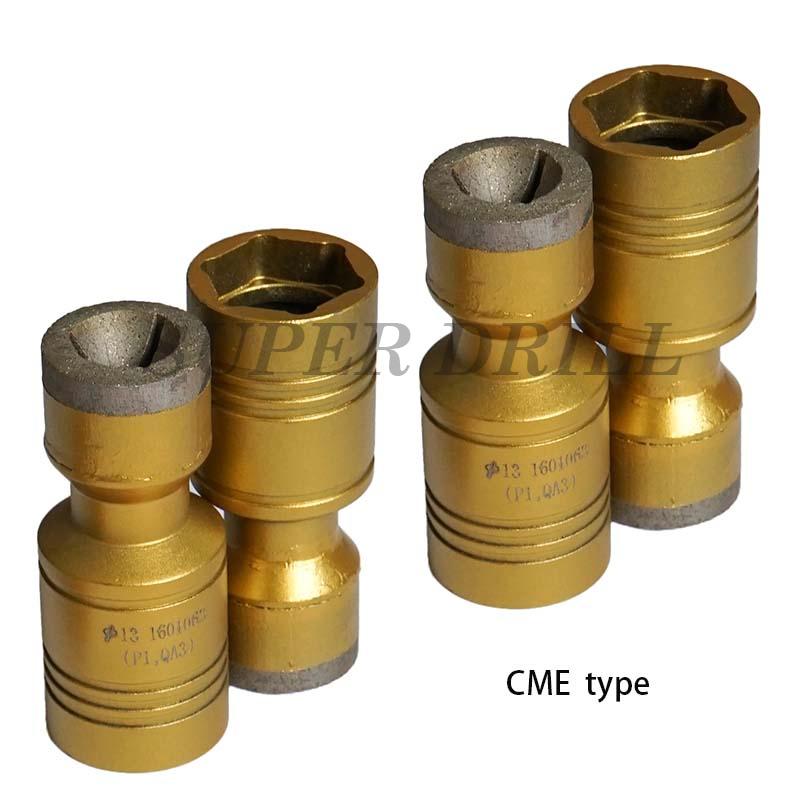

Button bit grinding cups

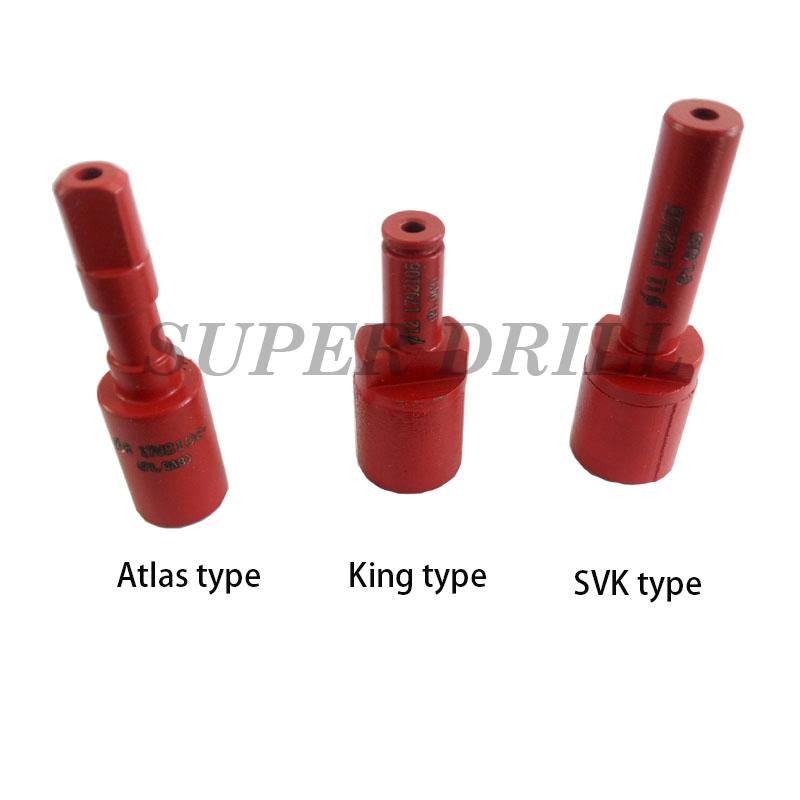

  • Type: King, SVK, CME, Altas.
  • shape: Dome, Semi-Ballistic, Ballistic,
  • size :from 7mm-26mm,
  • Product description: CME/Altas/Sandvik/King Button bit grinding cups,Air hand-held Button bit grinder machine (CME button bit grinder,pneumatic button bit grinder) Grinding machine for button bits, grinding pins, Hexagon
  • INQUIRY Email Whatsapp

CME/Altas/Sandvik/King Button bit grinding cups -superdrill

We are a professional grinding cup manufacturer. Our main models are CME/Altas/Sandvik/King Button bit grinding cups.

This high powered grinding head, primarily designed to be used in the powerful hand held pneumatic button bit grinder, is configured for hand-held use by ergonomic placement of a very efficient throttle and support handle. Simplicity in design combined with the latest manufacturing techniques gives the operator a powerful tool for the most demanding job.leading the technological evolution of button bit grinding equipment is our aim.

 Air hand-held Button bit grinder machine (CME button bit grinder,pneumatic button bit grinder) Grinding machine for button bits, grinding pins, Hexagon grinding cup for drill bit, grinding carbide, button bit, DTH bit, tungsten carbide, air flush, water flush, button bit grinder is used for grinding carbide on button bits such as DTH-button bits, and top hammer percussive bits.

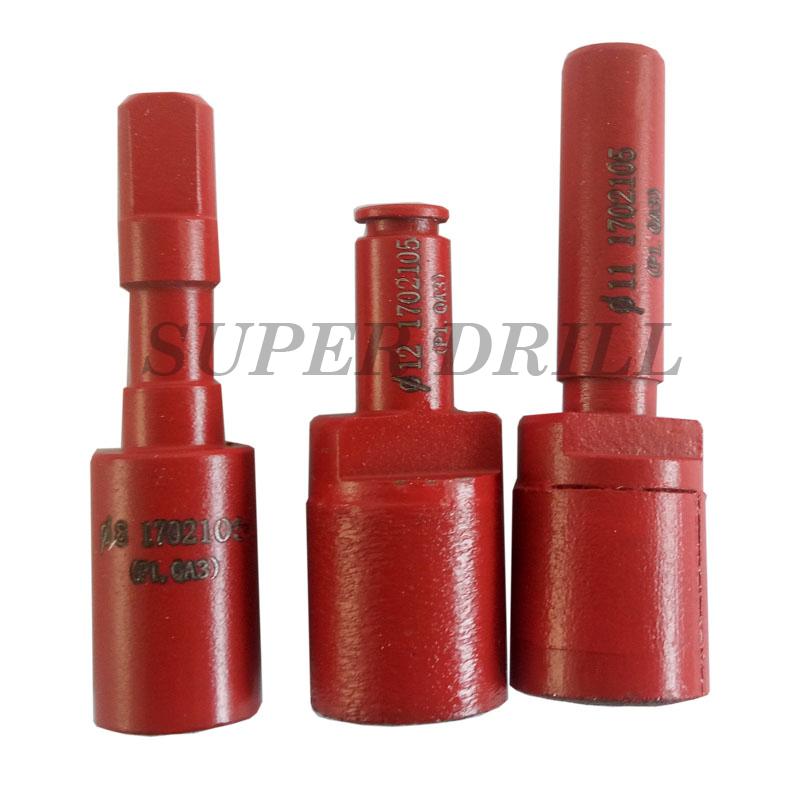

Grinding pin

Diameter to fit bit size from :7mm-26mm,

shape: Dome, Semi-Ballistic, Ballistic,

Type: King, SVK, CME, Altas.

Type

For button diameter

KING

7mm-26mm

SANDVIK

7mm-26mm

ATLAS

7mm-26mm

CME

7mm-26mm


DO YOU NEED

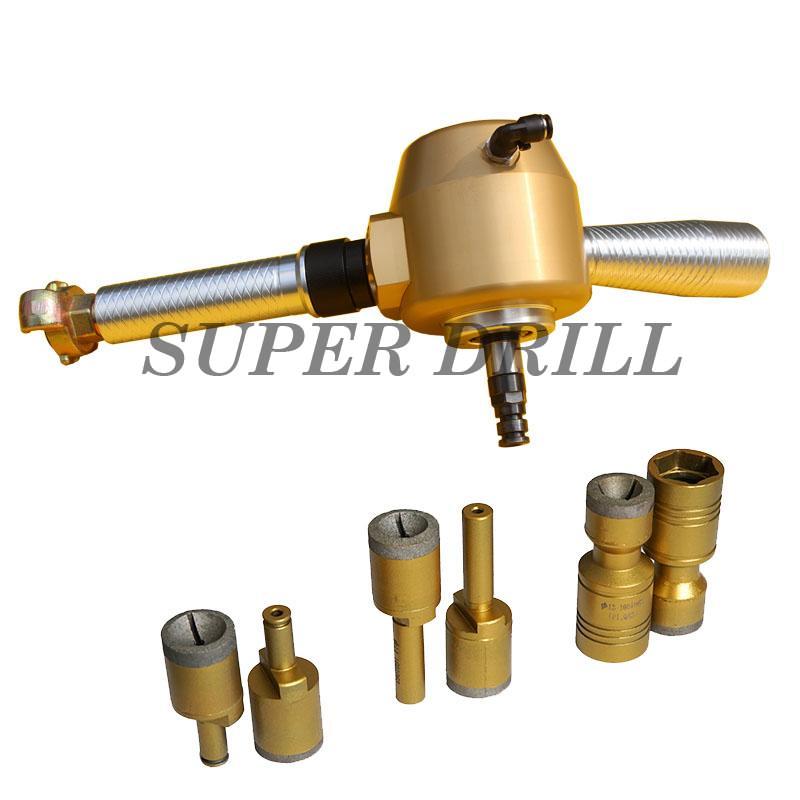

Pneumatic button bit grinder


This high powered grinding head, primarily designed to be used in the powerful hand held pneumatic button bit grinder, is configured for hand-held use by ergonomic placement of a very efficient throttle and support handle. Simplicity in design combined with the latest manufacturing techniques gives the operator a powerful tool for the most demanding job.leading the technological evolution of button bit grinding equipment is our aim. Air hand-held Button bit grinder machine (CME button bit grinder,pneumatic button bit grinder) Grinding machine for button bits, grinding pins, Hexagon grinding cup for drill bit, grinding carbide, button bit, DTH bit, tungsten carbide, air flush, water flush, button bit grinder is used for grinding carbide on button bits such as DTH-button bits, and top hammer percussive bits.

Model

SPD09

Air Pressure

5-7 bar (72-100psi)

Air Consumption, max

35L/S, 2m/2min

Water flushing pressure, max

4 bar(Psi)

Ladling speed

22000r/min

Air hole diameter

19mm

Water hole diameter

6mm

For the size of button bits

6-25mm

Type

For button diameter

KING

7mm-20mm

SANDVIK

7mm-20mm

ATLAS

7mm-20mm

CME

7mm-20mm
