DTH Drill Pipe Joint

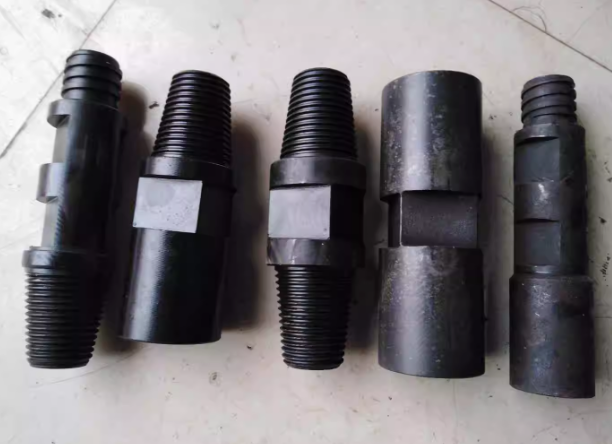

We offer three types of DTH Drill pipe adapters to suit different connection needs and drilling system configurations:

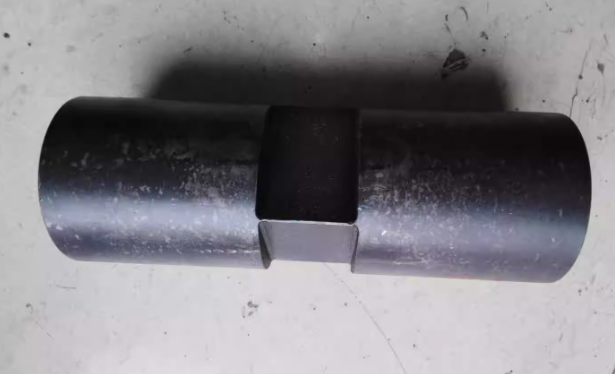

1. BOX-BOX (Female–Female) Adapters

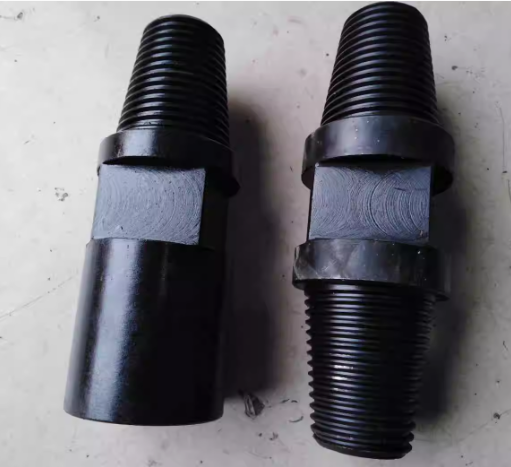

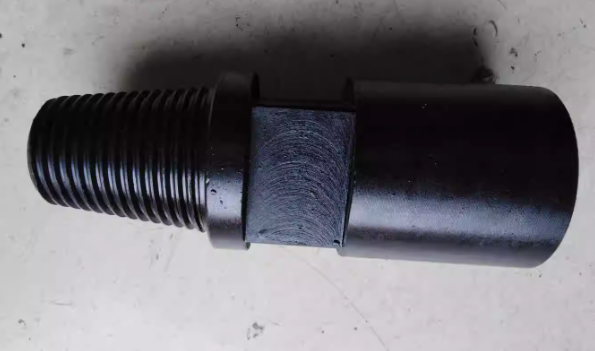

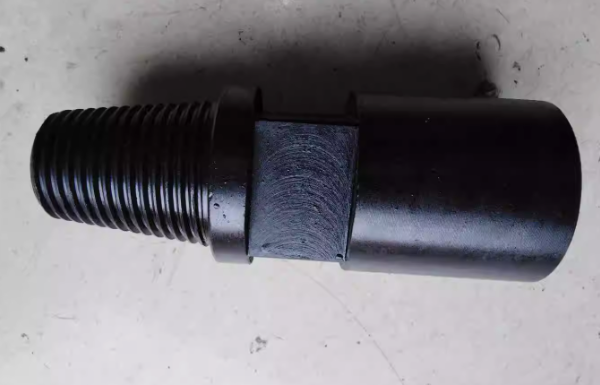

2. PIN-BOX (Male–Female) Adapters

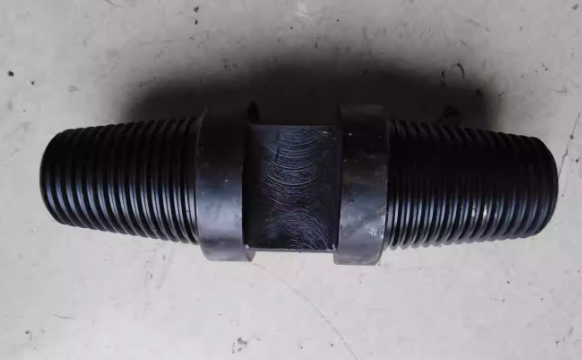

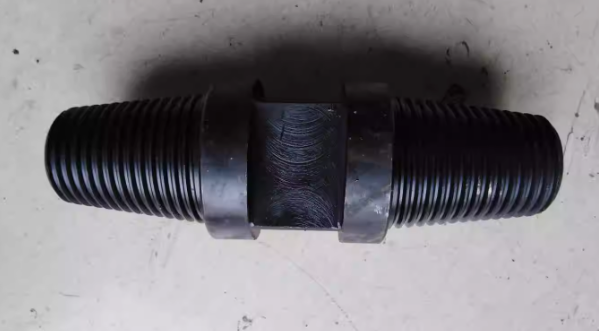

3. PIN-PIN (Male–Male) Adapters

All SUPERDRILL adapters are made from high-strength alloy steel and are designed to deliver reliable torque and impact energy transfer during down-the-hole drilling.

 Customization Options:

• Length

• Outside Diameter (O.D.)

• Inside Diameter (I.D.)

• Thread Type & Combination (API REG, IF, FH, BTC, etc.)

Our adapter solutions ensure maximum compatibility between drill pipes, hammers, and other tooling components in your drilling setup.

Bit Sub Adapter Type

1. Box-Box Adapters
(For use with DTH hammers)

Box-Box Adapters Specification:

2. Pin-Box Adapters
(For use with DTH hammers)

Pin-Box Adapters Specification:

3. Pin-Pin Adapters
(For use with DTH hammers)

Pin-Pin Adapters Specification:

76-76 male and female connector

76-76 double male connector

76-76 double female connector

External 76-internal 60 connector

External 76-internal 64 connector

External 76-external 64 connector

External 76-external 60 connector

Internal 76-external 60 connector

Internal 76-external 64 connector

Internal 76-internal 60 connector

Internal 76-internal 64 connector

Internal 76-internal 60 connector

Internal 76-internal 64 connector

42-50 impactor connector

42-60 impactor connector

42-70 impactor connector

50-90 impactor connector

60-90 impactor connector

89-89 male and female connector single card

External 89-internal 76 connector single card

External 76-internal 89 connector double card

Internal 89-external 76 connector Single card

64-64 double female connector

64-64 male and female connector

64-64 double male connector

Internal 64-internal 60 connector
