Diamond wire saw machine

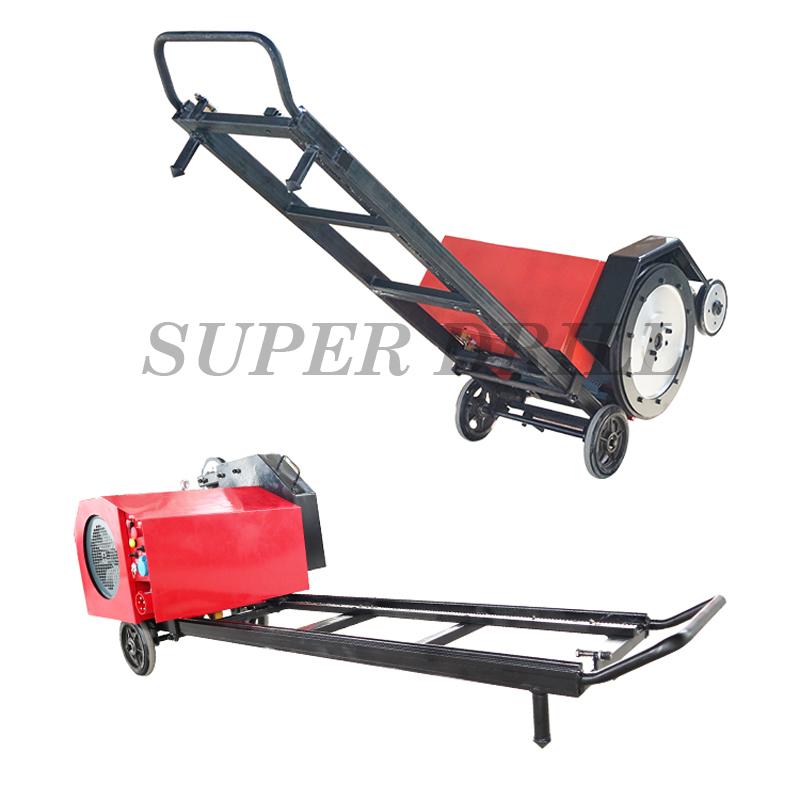

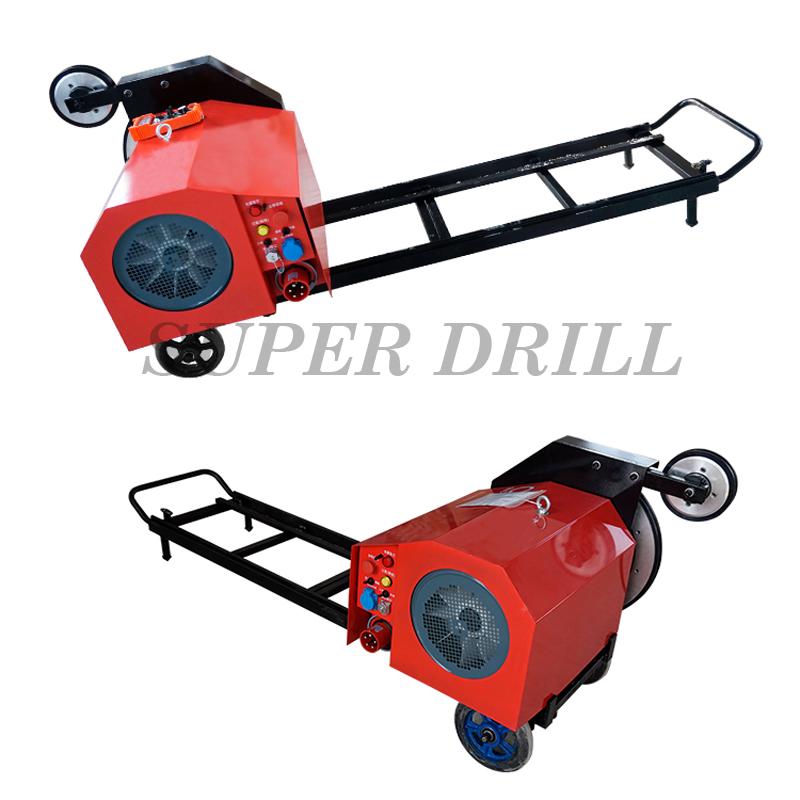

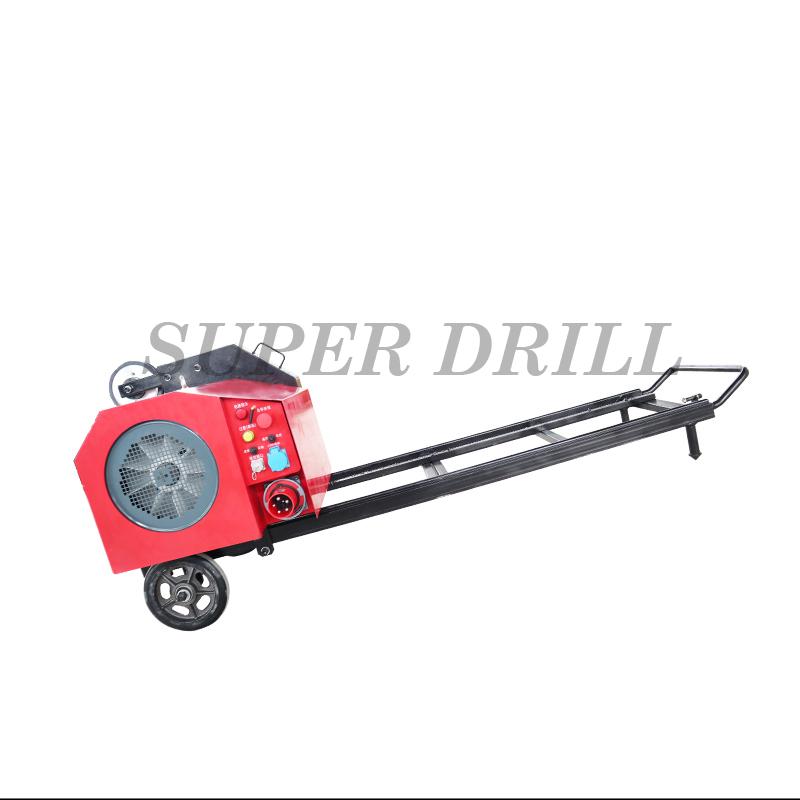

Small portable diamond wire saw cutting machine

Small portable diamond wire saw cutting machine

Use: Concrete Cutting
Type: Concrete Cutting Machine
Power: 22KW
Walking Speed: 0-40m/s
Product description: Small portable diamond wire saw cutting machine for construction reinforced concrete cutting,Apply to reinforced concrete constructions cutting like reinforced concrete wall , concrete wall, block wal
INQUIRY Email Whatsapp

Small portable diamond wire saw cutting machine Apply to reinforced concrete constructions cutting like reinforced concrete wall , concrete wall, block wall, bridge, subway, tunnels and small block squaring etc.

Product Feature:

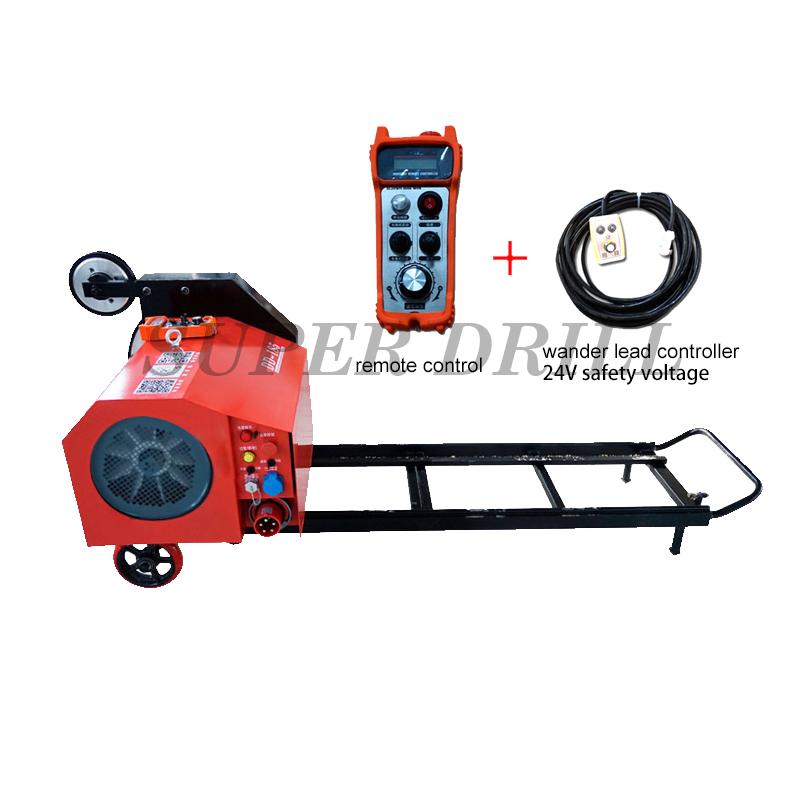

1.Remote control
2.Easy operation
3.Convenient to use and maintain
4.Stable cutting performance

5.High cutting efficiency/High speed/Lower cost.

Technical Parameters
Model	22KW	18.5KW
Motor power	22KW	18.5KW

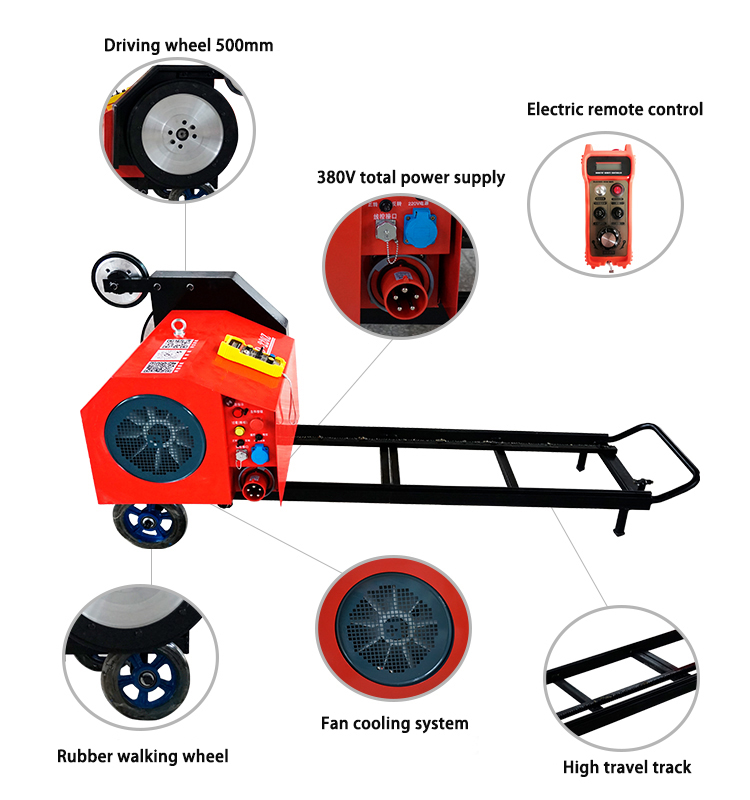

OD of Driving Pulley	500mm	500mm
Length of wire	20-50	20-40
Walking speed	0-40m/s	0-40m/s
Walking motor power	0.2kw	0.2kw
Rail length	1300mm	1300mm
Rail width	450mm	450mm
RPM	0-980r/min	0-980r/min
Voltage	AC380±10% 50Hz 3phase	AC380±10% 50Hz 3phase
Working environment temperature	(-15ºC- +40ºC)	(-15ºC- +40ºC)
Total weight	220kg	200kg
Size	24009001000mm	24009001000mm

Warranty description:

1. Main motor and Sub-motor: 6 months warranty (except for human reasons, such as missing items, overload, under pressure, water intake, etc.)

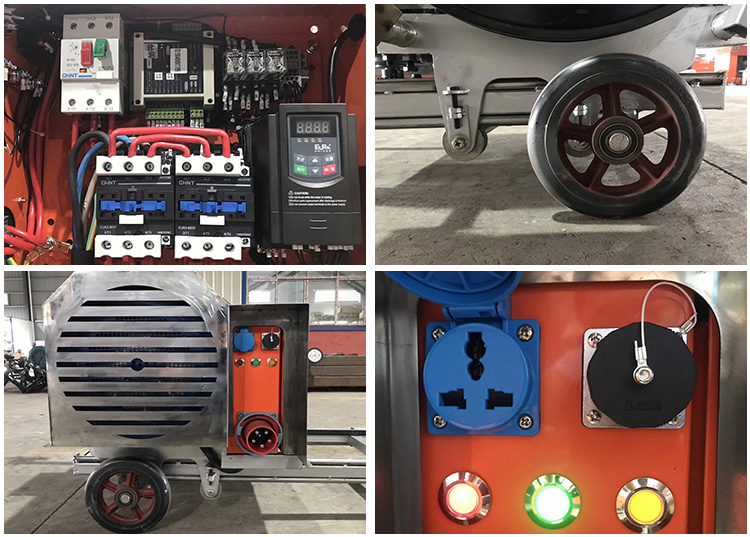

2. Electric box: The inverter is guaranteed for 6 months (except for human reasons. such as the power supply is
wrong, the voltage is not within the rated range, etc. The electrical box is not waterproof, resulting in damage to the original device)

3. Other vulnerable electrical components warranty 3 months.

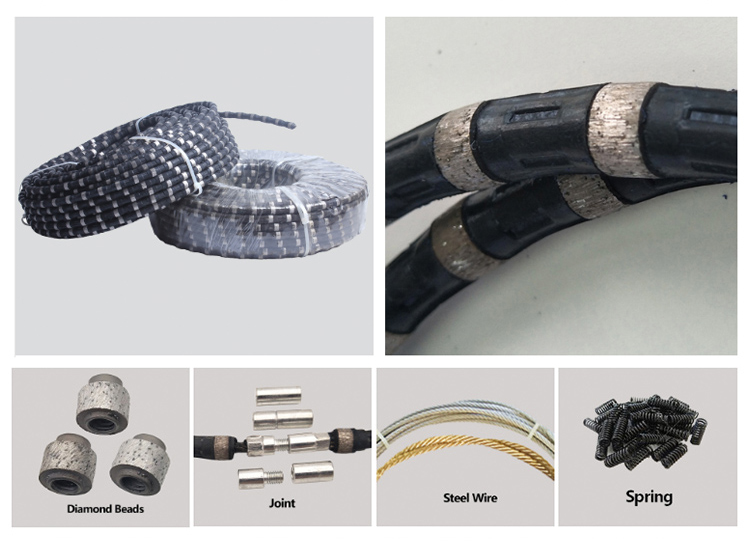

Diamond Wire Saw For Reinforce Concrete Cutting:

We recommend 11.5mm Rubber and Spring wire.
The wires are widely used in the reinforced concrete with more than 5% steel inside. Used in the building constructions, cutting for houses, bridges, cement pipes and under water buildings.
WE ARE ASSURING THAT THE CUTTING LIFE WILL BE OVER THAN 2.5~3.0SQM/METER.
