Diamond wire saw machine

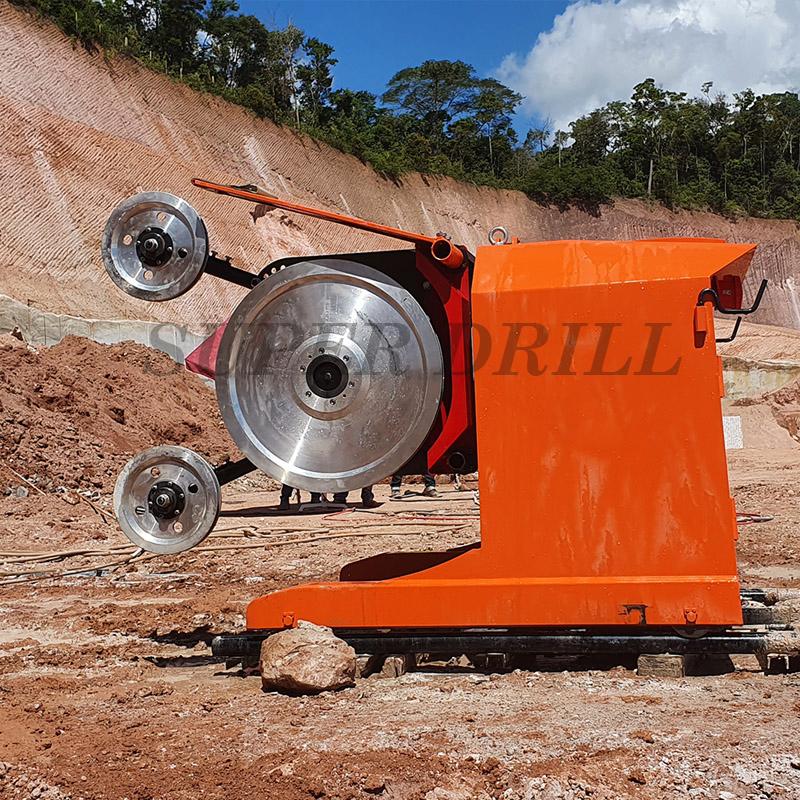

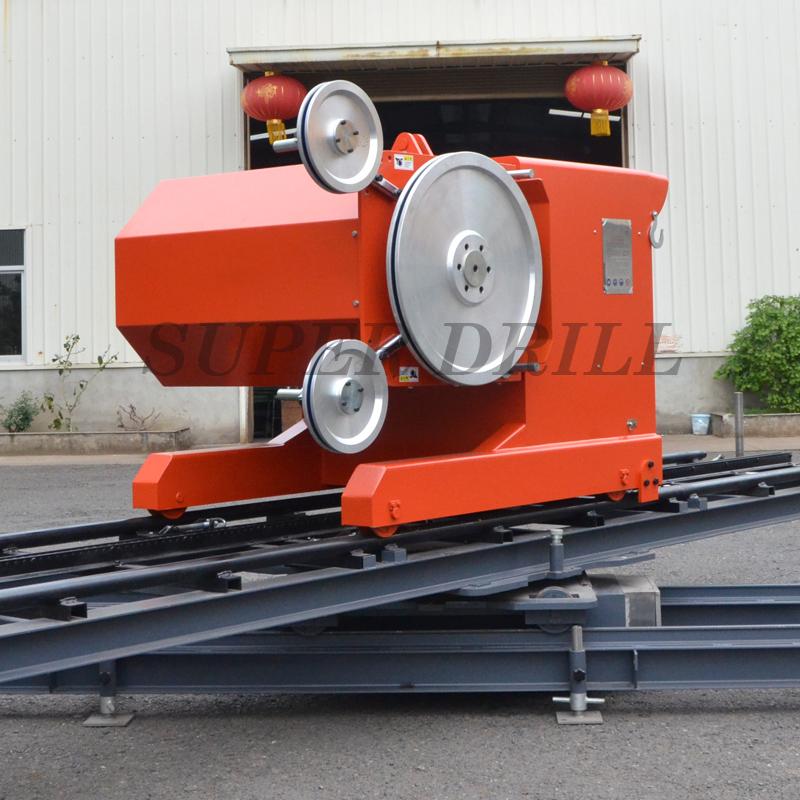

Diamond Wire Saw Machine for Quarrying

Use: Granite/Marble
Type: Stone Cutting Machine
Power: 30KW/37KW/45KW/55KW/75KW/90KW
Walking Speed of Machine: 0~40m/s

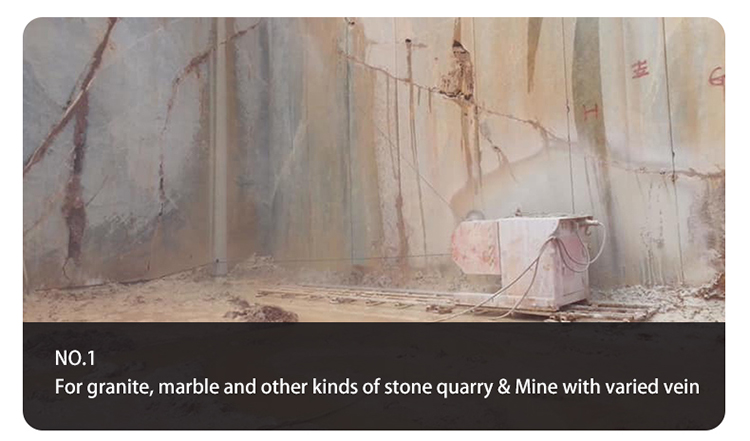

Product description: Diamond Wire Saw Machine Quarry be used to cut various kinds of stones, such as marble, granite. The stone cutting machine cutting area for marble is 10-16 m²per hour, and for granite cutting, it i
INQUIRY Email Whatsapp

Our series wire saw machines are with PLC control and double vector invertors for both the main motor and travel motor, with main features as below:

1. Being controlled by two sets of inverters and applying constant control principle, the moving speed of the machine can be adjusted automatically according to the changes of the cutting force to make sure the diamond wire saw be in the best cutting condition all the time.

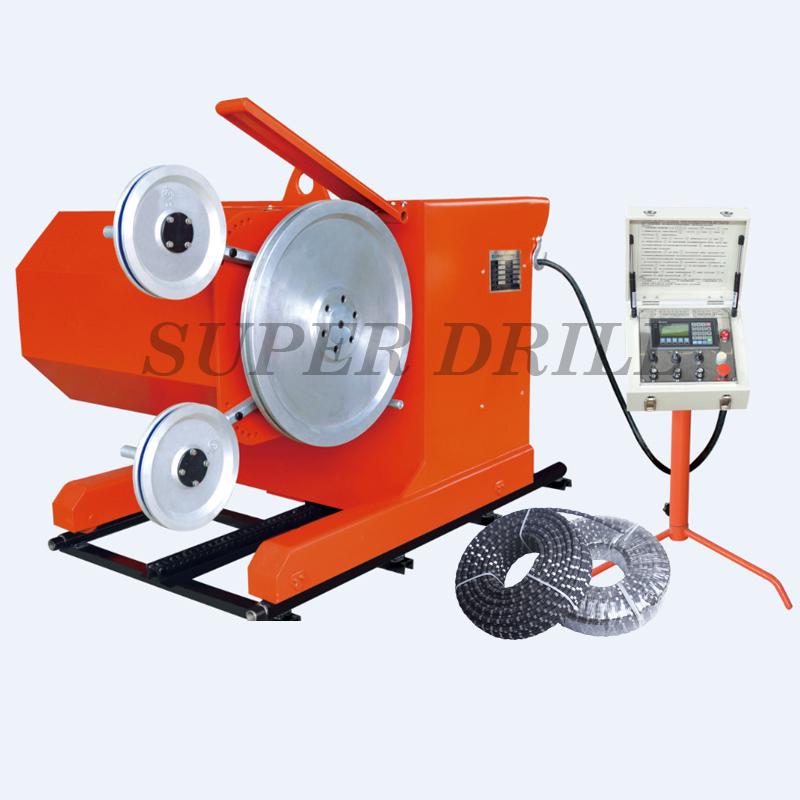

2. The electric cabinet is placed separately. It is easy for maintenance.

3. The real-time parameters are displayed on the control platform, such as the set current of the main motor, the current and the rotation speed of the main motor, etc. It makes the operation and adjustment of the machine more convenient.

4. The machine can be operated manually and automatically. The manual and automatic functions can be shifted from each other. Under the automatic function, the machine can be unattended operated, and one worker is able to operate multiple machines.

5. The lateral position and the rotation angle of the cutting head can be adjusted manually. This design is more economic and practical and highly cost effective.

Model	Main Motor Power	Drive wheel diameter (mm)	Length of Wire (m)	Head lateral movement	Head rotation	Line Speed (m/s)	Rails	Dimension of machine	Net Weight
CD-30MA-8P	30KW		5-40		360	0-30/40	3pcs,2M	2000X1300X1450	2600kg
CD-37MA-8P	37KW	650/800	20-80	1750mm	360	0-30/40	3pcs,2M	2000X1300X1450	2800kg
CD-45MA-8P	45KW	650/800	20-100	1750mm	360	0-30/40	3pcs,2M	2000X1370X1510	3000kg
CD-55MA-8P	55KW	650/800	20-120	2000mm	360	0-30/40	3pcs,2M	2000X1370X1510	3500kg
CD-75MA-8P	75KW	800/1000	20-120	2000mm	360	0-30/40	3pcs,2M	2000X1450X1580	4300kg
CD-90MA-8P	90KW	800/1000	20-150	2000mm	360	0-30/40	3pcs,2M	2000X1450X1580	4800kg

Advanced Features:

1.According to our many years' experience in stone quarries and the valuable suggestions proposed by our customers, our company develops a brand new control system, with the purpose of solving the special operating conditions in stone quarry process and its adjustable functions can meet the demand of practical operating conditions better.

2.A new operating system makes all performance are stable and reliable.

3.Add a position-limit switch to make the main motor can only rotate + 180o.

4.A fault warning function is added to the control panel so that it becomes easier and save time to find out the faults.

5.Using frequency converter+PLC control, the motor can be stepless speed regulation.

6.Using digital communication, the control circuit is simple and the failure rate is low.

7.Control panel is fixed HMI screen.its waterproof and dust-proof, which also has dynamic display images and working information, like as input voltage, cutting data and working time.

8.Intelligent fault detection of equipment system, alarm protection and prompt solutions, timely treatment, user-friendly.

9.Using PID technology, machine can adjust feeding speed automatically according to the changing load of main motor, which keeps the wire tension constant and extend the wire life span.
