Reaming Bits for Rock Reaming

Reaming bits for Rock Reaming

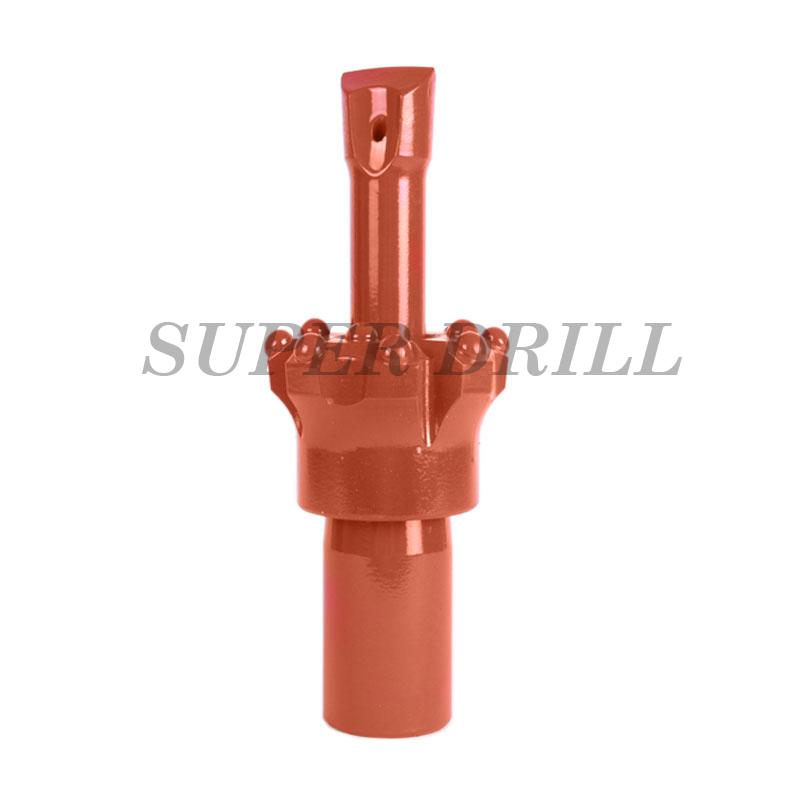

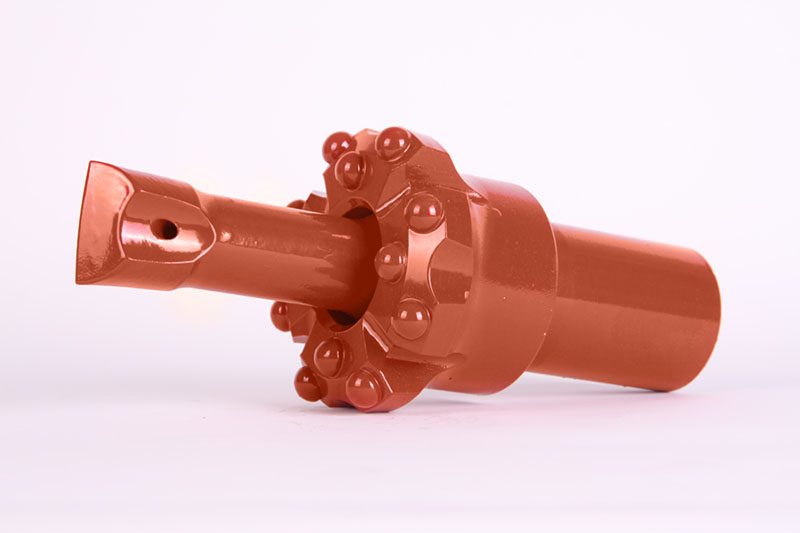

Also called a pilot reamer, this tool works by first drilling a small guide (pilot) hole. It then automatically expands this hole to a larger, finished size.

High-quality reaming bits, reaming tools, reaming drilling bits, integral reaming bits, reaming bits with pilot adapter, button bits, and Threaded Drill Bits are all produced by Superdrill.

Button bit reaming was a common practice in mining and quarrying for blast hole drilling.

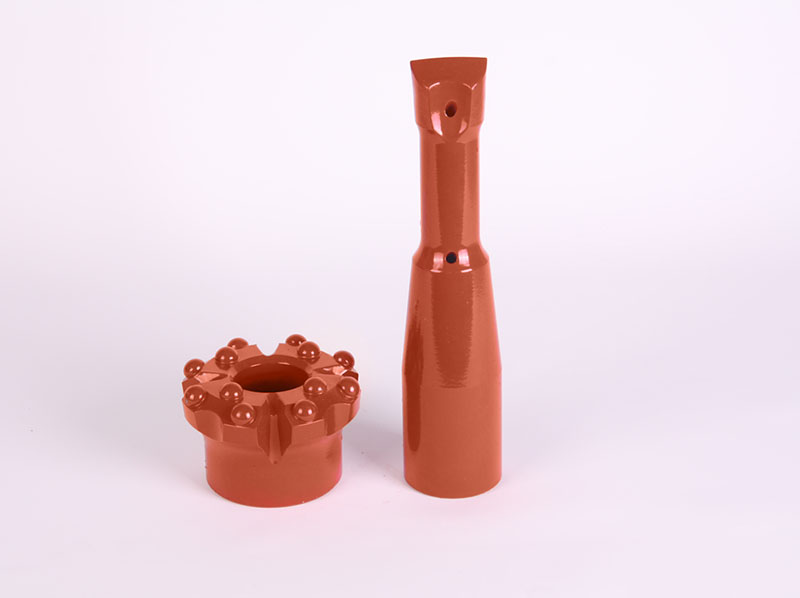

Drilling accuracy and direction can be guaranteed with the use of pilot adapters.
Bit type: Reaming bits / Dome bits

Angle of Connection: 6 / 10 / 12 degrees
Pilot adaptor diameters: 26 / 28 / 35 / 40 mm, etc.
Button bit diameters for reaming are 60, 64, 70, 76, 80, 89, 102, 127, and 150 mm.
Type of thread: R25, R28, R32, R38

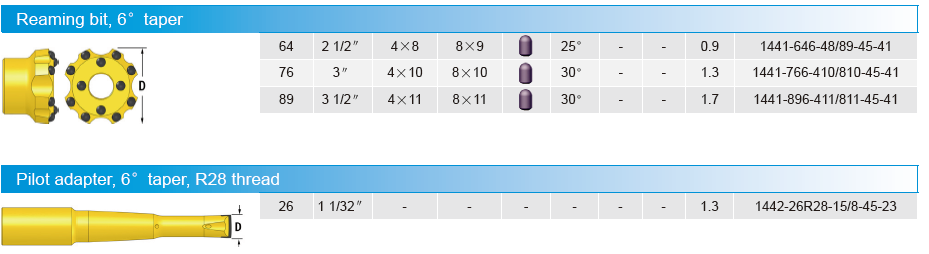

Reaming bit, 6°taper，Pilot adapter, 6°taper, R25 thread

Reaming bit, 6°taper，Pilot adapter, 6°taper, R28thread

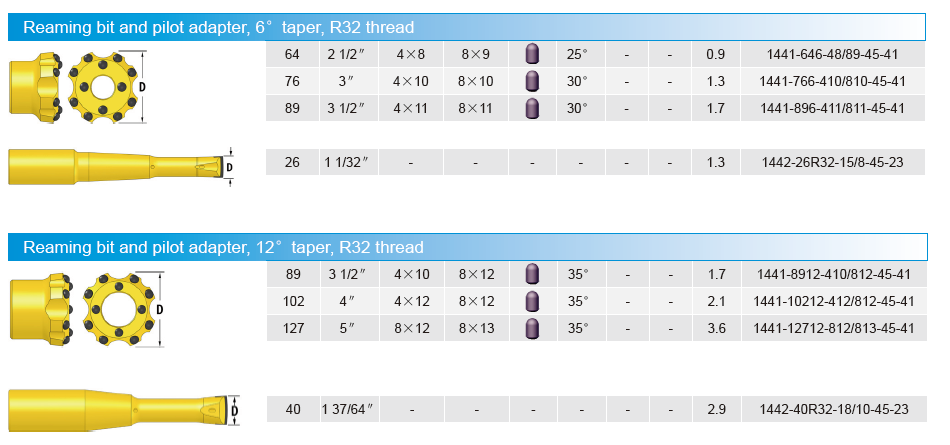

Reaming bit and pilot adapter, 12°taper, R32 thread

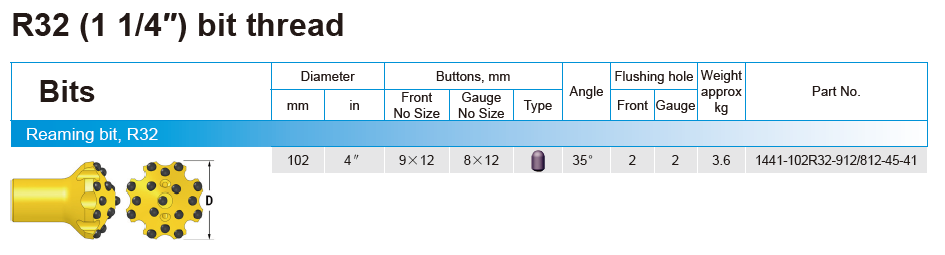

R32 (1 1/4″) bit thread

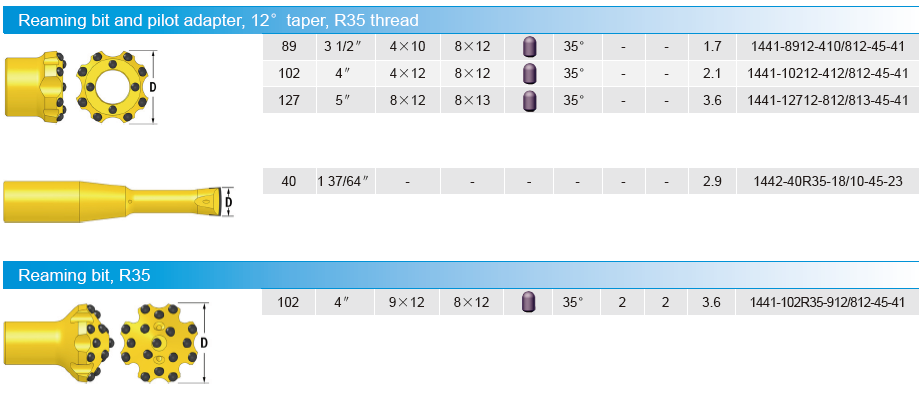

Reaming bit and pilot adapter, 12°taper, R35 thread

Reaming bit, R32

Integral Reaming Bit R32-102mm
