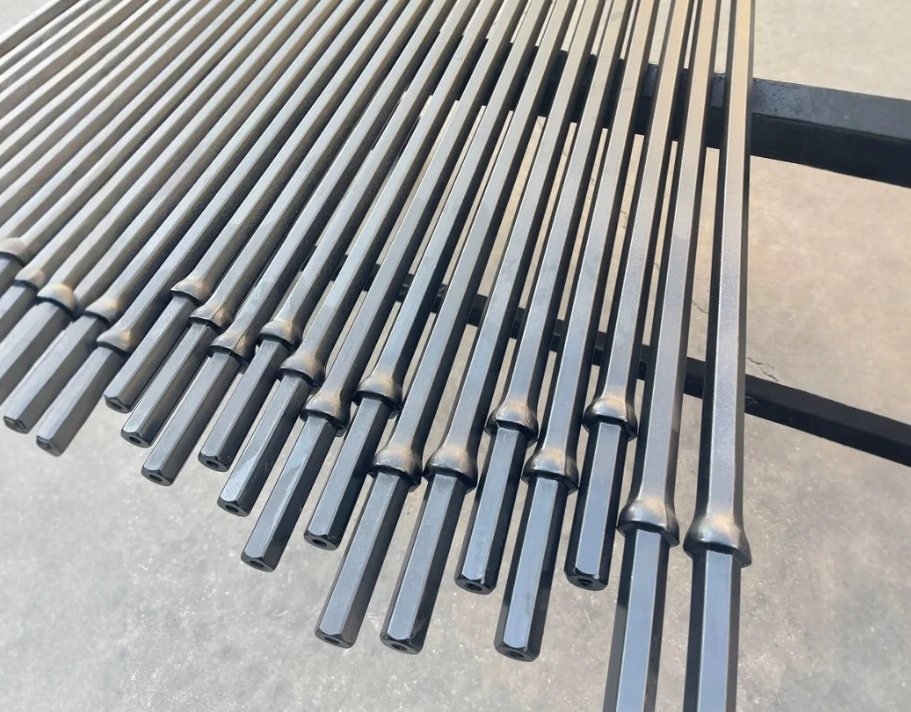

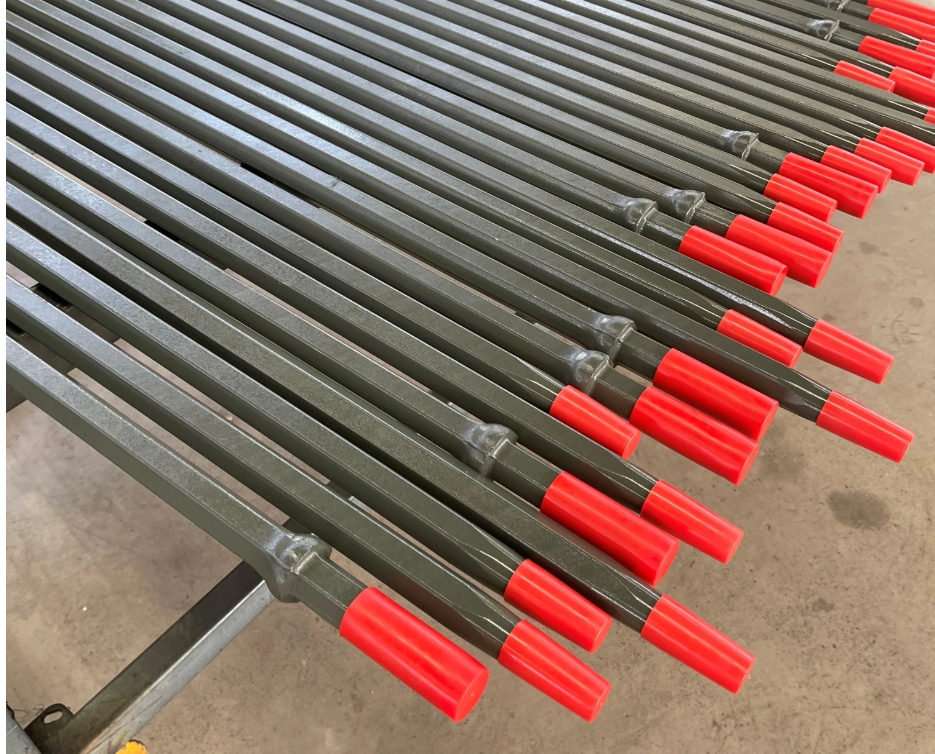

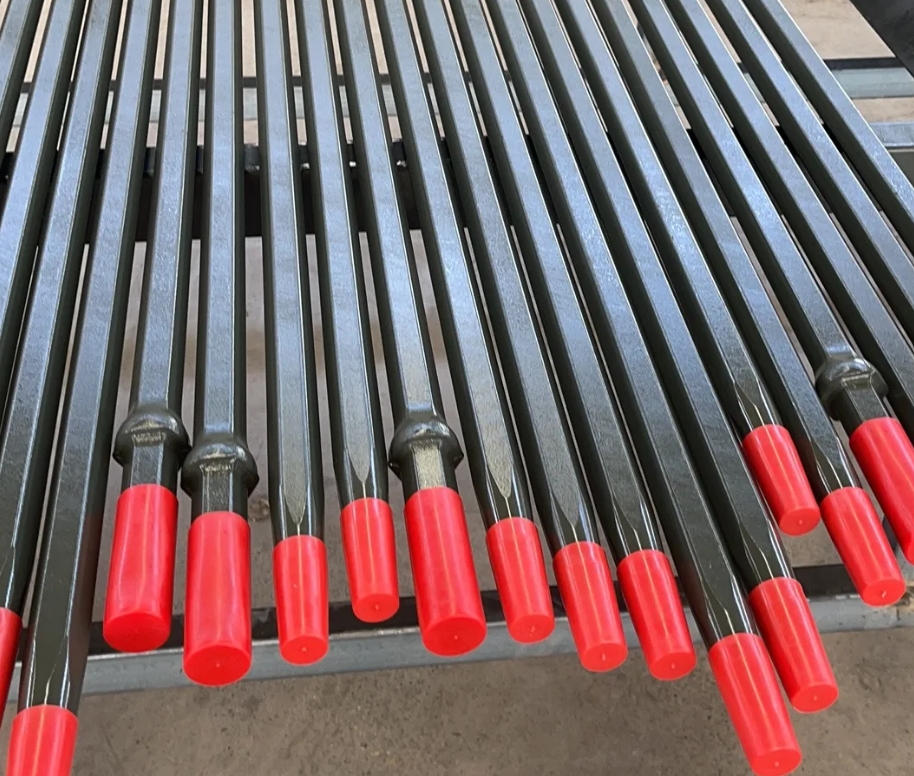

The Tapered drill rod by SUPERDRILL (also called Taper Rod or Tapered Drill Steel) is designed to enable strong and reliable connection between your rock drill and bit.
Tapered drill rods are typically made from high-strength alloy steel, ensuring maximum durability, resistance to wear, breakage, and corrosion.
The rods are available in various sizes and taper angles (e.g.: 7°, 11°, 12°) to enable you to select the perfect match for your application.
Place of Origin: China
Brand Name: SUPERDRILL
Model Number: H19, H22, H25
Processing Type: Forging
Productive Process: Carburized, Heat-treated
Material: 23CrNi3Mo, 55SiMnMo, Z708
Shank Size: H22x108±1mm, H25x159±1mm
Rod Length: 0.6m–8m
Diameter | Weight (kg) | P/N | |
mm | inch | ||
600 | 2" | 1.93 | H22-7-0600 |
800 | 2'6" | 2.54 | H22-7-0800 |
1000 | 3'3" | 3.15 | H22-7-1000 |
1200 | 3'9" | 3.76 | H22-7-1200 |
1500 | 4'11" | 4.68 | H22-7-1500 |
1600 | 5'3" | 4.98 | H22-7-1600 |
1800 | 5'9" | 5.59 | H22-7-1800 |
2000 | 6'7" | 6.2 | H22-7-2000 |
2200 | 7'2" | 6.81 | H22-7-2200 |
2300 | 7'6" | 7.12 | H22-7-2300 |
2400 | 7'9" | 7.42 | H22-7-2400 |
2500 | 8'2" | 7.73 | H22-7-2500 |
2600 | 8'8" | 8.03 | H22-7-2600 |
3000 | 9'10" | 9.25 | H22-7-3000 |
3500 | 11'5" | 10.78 | H22-7-3500 |
4000 | 13'1" | 12.3 | H22-7-4000 |
4500 | 14'8" | 13.83 | H22-7-4500 |
5000 | 16'4" | 15.35 | H22-7-5000 |
5500 | 17'1" | 16.88 | H22-7-5500 |
6000 | 19'7" | 18.3 | H22-7-6000 |
4000 | 13'1" | 16.1 | H25-7-4000 |
4700 | 15'4" | 18.9 | H25-7-4700 |
5000 | 16'4" | 22.1 | H25-7-5000 |
5500 | 18'1" | 22.1 | H25-7-5500 |
6000 | 19'7" | 24.1 | H25-7-6000 |
Hex.22mm Tapered Rod, carburized, 11 degree
Data:
Diameter | Weight (kg) | P/N | |
mm | inch | ||
610 | 2' | 2.2 | H22-11-0610 |
1220 | 4' | 4.1 | H22-11-1220 |
1830 | 6' | 5.9 | H22-11-1830 |
2000 | 6'7'' | 6.4 | H22-11-2000 |
2435 | 8' | 7.8 | H22-11-2435 |
2600 | 8'8'' | 8.3 | H22-11-2600 |
3200 | 10'6'' | 10.1 | H22-11-3200 |
3655 | 1 2' | 11.5 | H22-11-3655 |
4000 | 1 3'1'' | 12.6 | H22-11-4000 |
4800 | 1 5'9'' | 14.9 | H22-11-4800 |
5600 | 1 8'4'' | 17.4 | H22-11-5600 |
6400 | 2 1' | 19.8 | H22-11-6400 |
7200 | 2 3'6'' | 22.2 | H22-11-7200 |
8000 | 2 6'2'' | 24.6 | H22-11-8000 |
Contact: sales@superdrill.com.cn
Phone: 86-18186993613
Tel: 86-18186993613
Company: Hubei Superdrill Equipment Co.,Ltd
Add: Building 3, Rainbow road,No.188 ; wuhan ;Hubei province
