Tapered Rod

  • Tapered drill rod
  • Tapered drill rod
  • Tapered drill rod
Tapered drill rodTapered drill rodTapered drill rod

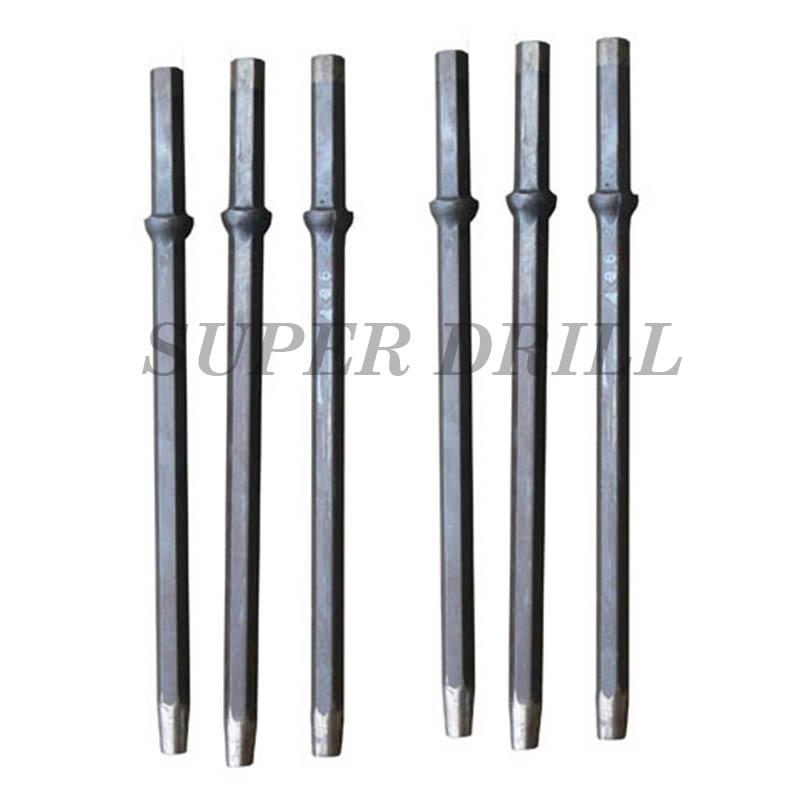

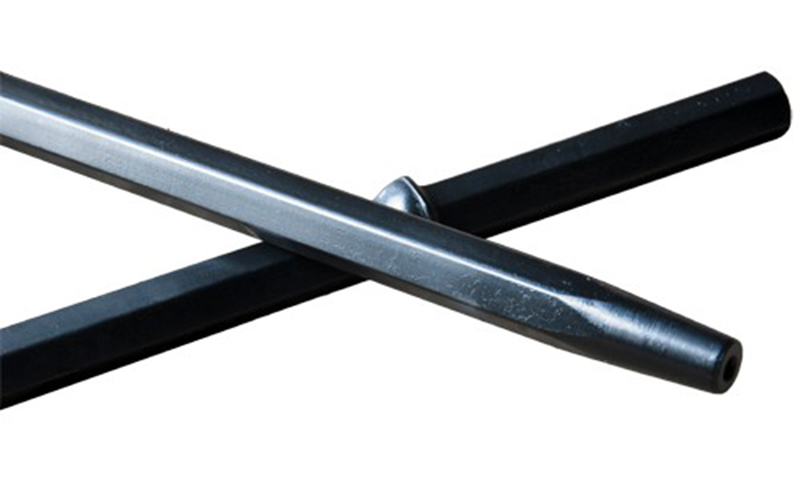

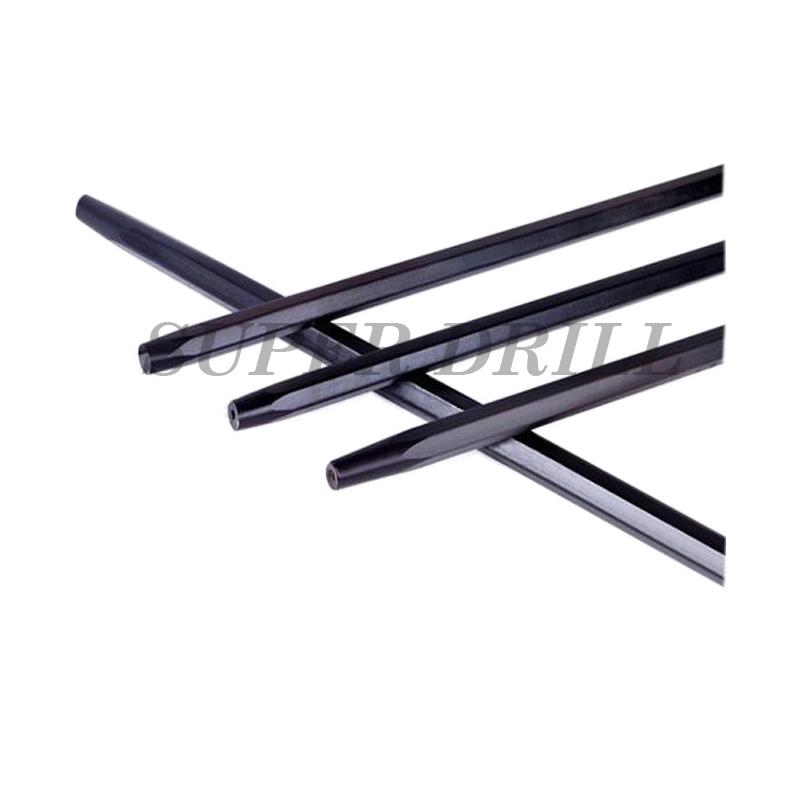

Tapered drill rod

  • Taper Angle: 4, 6, 7, 11, 12 degree
  • Length :600mm to 8000mm
  • Hex22mm*108mm
  • Hex25mm*159mm
  • Product description: Hex22/Hex25 Tapered Drill Rod Steel Rod another name called taper rod or conical drills, tapered drill steels from rock drilling tools manufacturer superdrill which provides a hexagonal chuck section
  • INQUIRY Email Whatsapp

Hex22/Hex25 Tapered drill rod Steel Rod

Hex22/Hex25 Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drillingere

Hex. 22mm Tapered Rod, 7 degree

Hex. 25mm Tapered rod, 7 degree

Materials :40SiMonCrNiMo

Tapered Drill Rod  Data:


Diameter

Weight (kg)

P/N

mm

inch

600

2"

1.93

H22-7-0600

800

2'6"

2.54

H22-7-0800

1000

3'3"

3.15

H22-7-1000

1200

3'9"

3.76

H22-7-1200

1500

4'11"

4.68

H22-7-1500

1600

5'3"

4.98

H22-7-1600

1800

5'9"

5.59

H22-7-1800

2000

6'7"

6.2

H22-7-2000

2200

7'2"

6.81

H22-7-2200

2300

7'6"

7.12

H22-7-2300

2400

7'9"

7.42

H22-7-2400

2500

8'2"

7.73

H22-7-2500

2600

8'8"

8.03

H22-7-2600

3000

9'10"

9.25

H22-7-3000

3500

11'5"

10.78

H22-7-3500

4000

13'1"

12.3

H22-7-4000

4500

14'8"

13.83

H22-7-4500

5000

16'4"

15.35

H22-7-5000

5500

17'1"

16.88

H22-7-5500

6000

19'7"

18.3

H22-7-6000

4000

13'1"

16.1

H25-7-4000

4700

15'4"

18.9

H25-7-4700

5000

16'4"

22.1

H25-7-5000

5500

18'1"

22.1

H25-7-5500

6000

19'7"

24.1

H25-7-6000

Hex.22mm Tapered rod, carburized, 11 degree

Data:

Diameter

Weight (kg)

P/N

mm

inch

610

2'

2.2

H22-11-0610

1220

4'

4.1

H22-11-1220

1830

6'

5.9

H22-11-1830

2000

6'7''

6.4

H22-11-2000

2435

8'

7.8

H22-11-2435

2600

8'8''

8.3

H22-11-2600

3200

10'6''

10.1

H22-11-3200

3655

1 2'

11.5

H22-11-3655

4000

1 3'1''

12.6

H22-11-4000

4800

1 5'9''

14.9

H22-11-4800

5600

1 8'4''

17.4

H22-11-5600

6400

2 1'

19.8

H22-11-6400

7200

2 3'6''

22.2

H22-11-7200

8000

2 6'2''

24.6

H22-11-8000
