Hydraulic rock splitter

  • Stone splitting darda same type hydraulic drill rock splitter
  • Stone splitting darda same type hydraulic drill rock splitter
  • Stone splitting darda same type hydraulic drill rock splitter
Stone splitting darda same type hydraulic drill rock splitterStone splitting darda same type hydraulic drill rock splitterStone splitting darda same type hydraulic drill rock splitter

Stone splitting darda same type hydraulic drill rock splitter

  • Model:SP150;SP250;SP350;SP450;
  • Plitting diameter: 42-50mm
  • Splitting force up to 600 tons
  • Light weight
  • Product description: It is our newly developed products for quarrying and civil construction, which is mainly applicable to the secondary breaking of large boulders, squaring breaking of large boulders ,squaring blocks. D
  • INQUIRY Email Whatsapp

The hydraulic rock splitter is a kind of hand-hold splitting and demolition tool.It can controllably split rock or concrete.Especially suit for cabined area where large machine can not work.Such as hydraulic breaker and place where is strictly limited of noise,dust,flying debris,shake,exhaust gas,also widely use in the place where need non-explosive and blast forbidden.

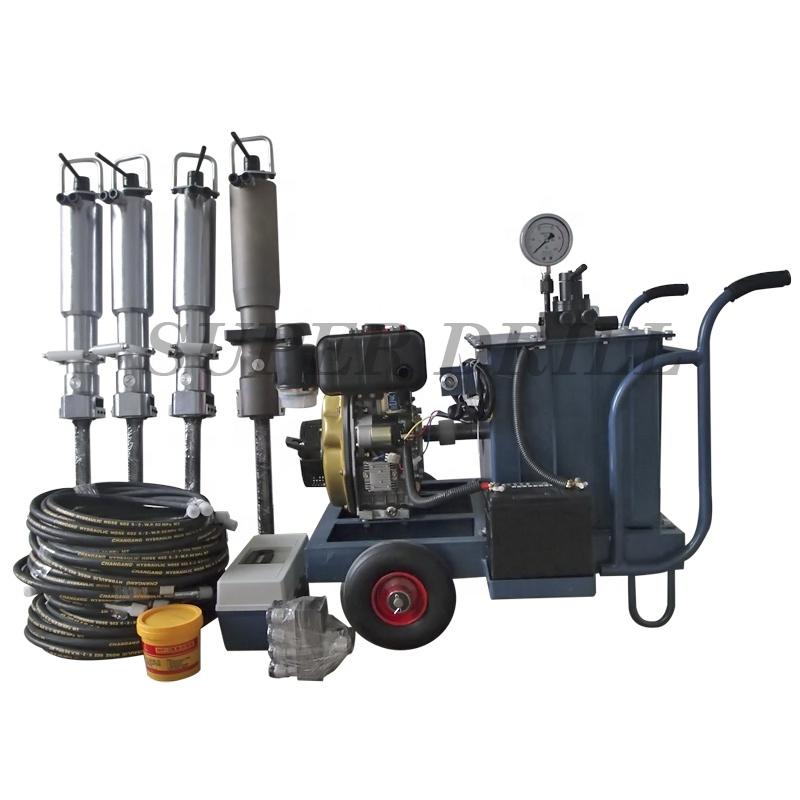

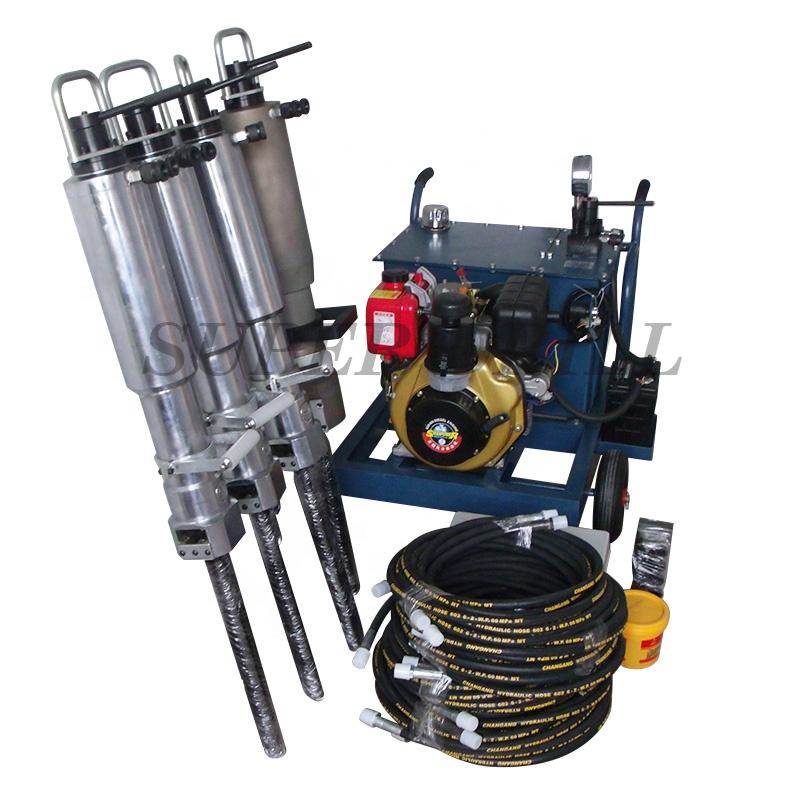

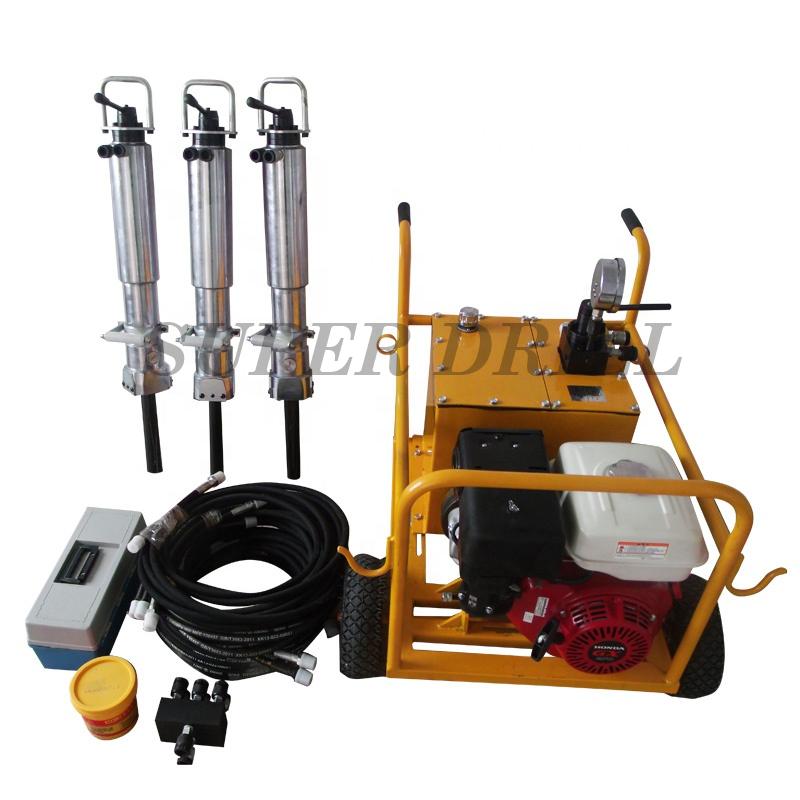

It is including Power Station and Cylinders.

Power Station:Diesel & Electric & Gasoline.

Cylinder (Gun):Aluminum & Steel.


One Station can match 1-10 pieces cylinders.

Model
Splitting hole Dia.(mm)
Splitting Parts Dia.(mm)
Splitting Effective Length (mm)
Mininum Drilling hole Depth (mm)
Actual Spltting Force (Ton)
Rated Working Pressure (Mpa)
Splitting Distance (mm)
SP150
42-44
40.5
150
400
600
55.63
13-18
SP250
42-44
40.5
250
500
600
55.63
13-18
SP350
46-48
44.5
350
600
600
55.63
13-18
SP450
46-48
44.5
450
700
600
55.63
13-18

Phase 1, First, a hole of a precise diameter and depth is drilled into the material. The wedge set (one wedge and two counter wedges) is inserted into the drill-hole.

Phase 2, The wedge is driven forward under hydraulic pressure, forcing the counter wedges apart with a force of up to 450 tons. The material splits within seconds.

Phase 3, With enlarging counter wedges the split can be expanded to its maximum width. Reinforcing rods break or can be cut up with a suitable power tool.

hydraulic splitter---Hydraulic pump station


hydraulic splitter---Splitting gun and wedge
