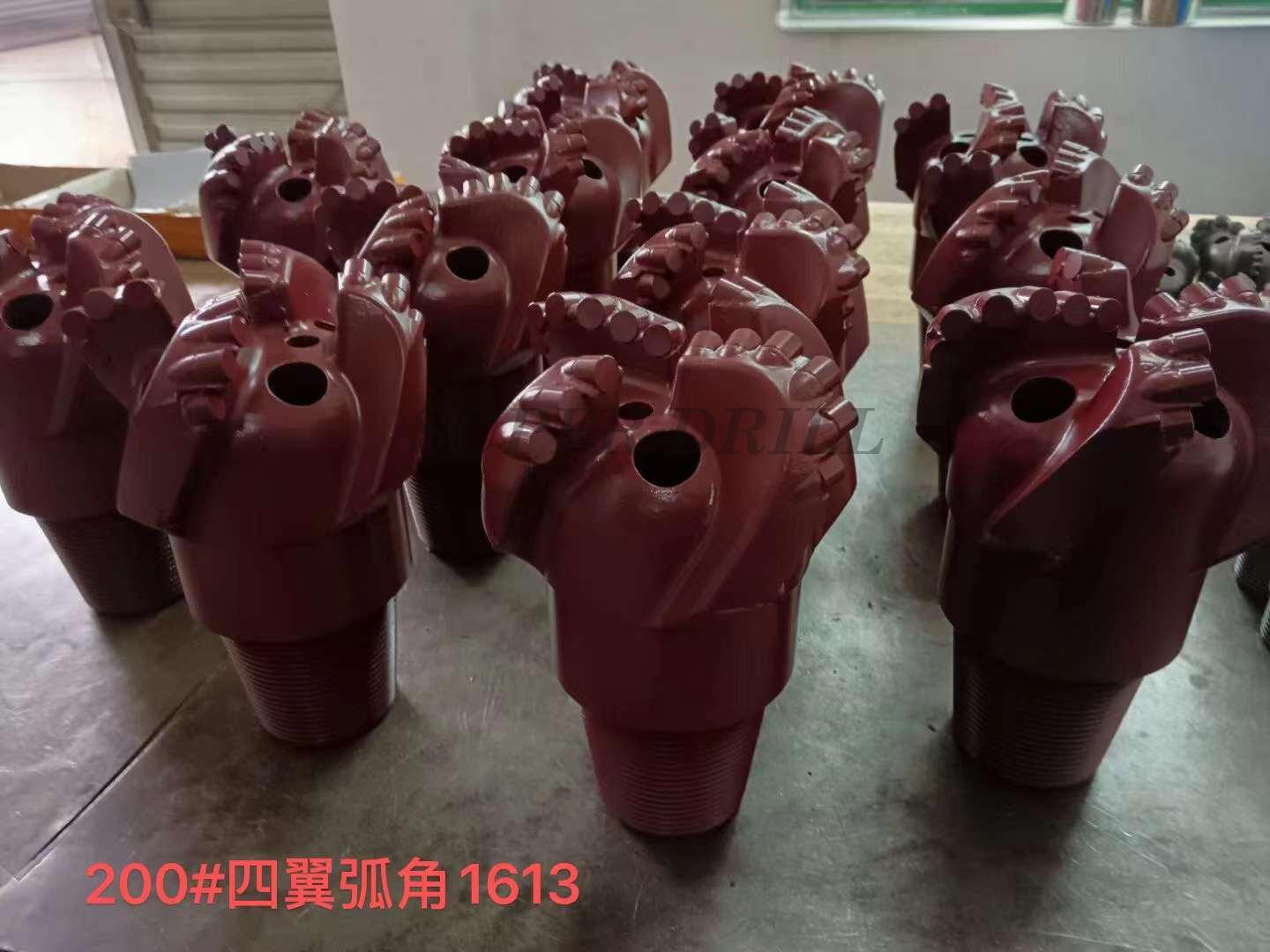

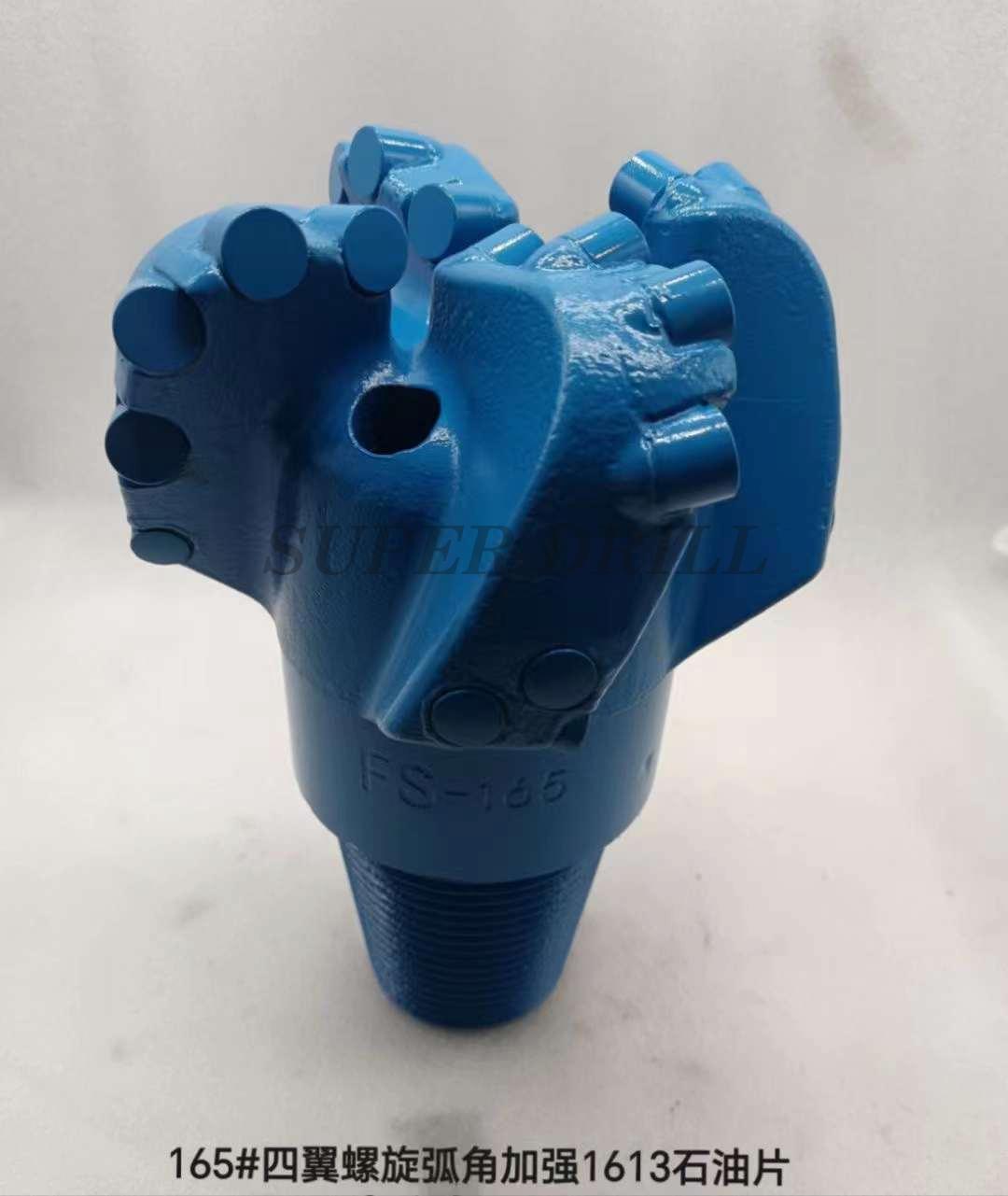

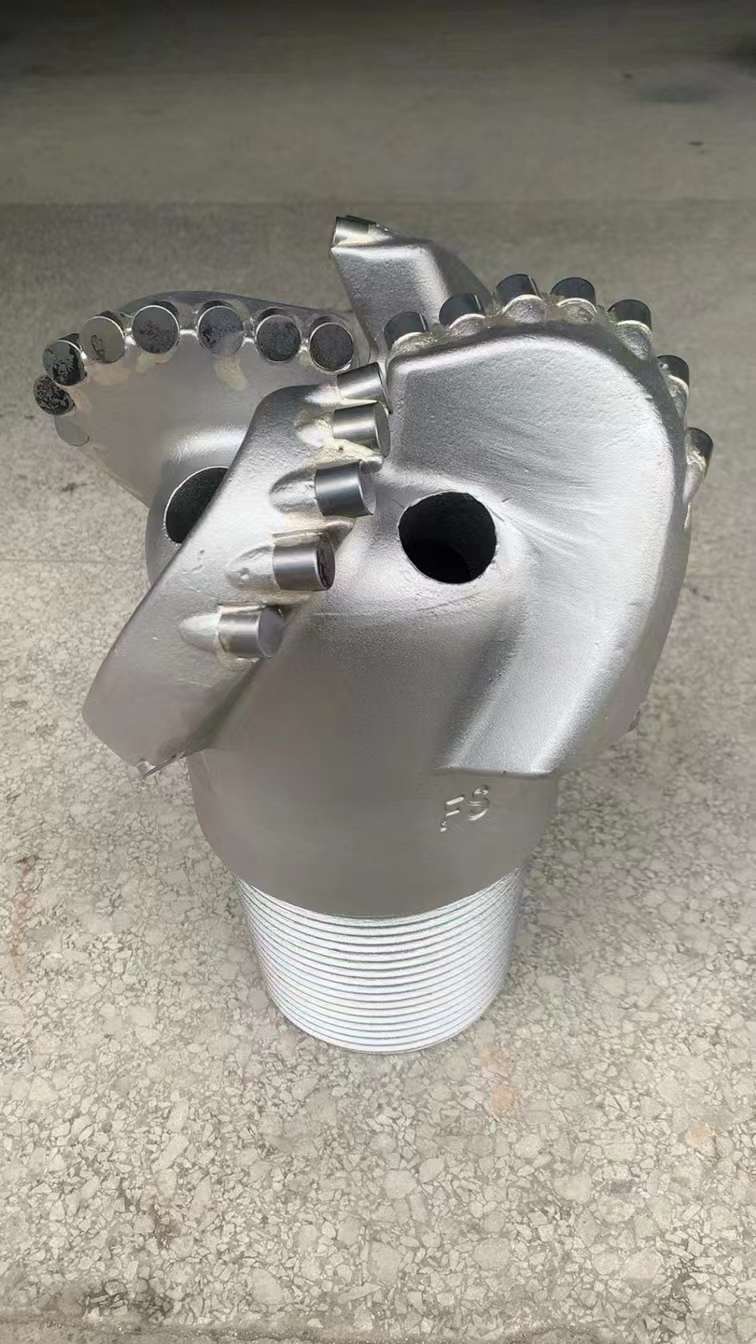

Four-wing arc angle drill bit series

Four-wing arc angle drill bit series（Four-wing drag bit）

Superdrill Four-wing arc angle drill bit series, fully tungsten carbide alloy steel one-piece body, made of imported 1613 petroleum sheets, welded with high strength Suitable for various grouting holes, gas discharge holes, pile foundation holes, slopes, supports, anchor cables, photovoltaic holes, deep water wells, ground source heat pump holes, etc.

OUR PDC DRILL BIT SIZE:60mm, 65mm, 75mm, 89mm, 94mm, 101mm, 113mm, 130mm, 150mm, 170mm, 190mm, 210mm etc.

Blades / Wings:2/3/4/5/6/7/8

Bit type:Pillar type, concave , three wings, four wings.

Rotary Speed:60-300 rpm

Suitable rock:Soft, medium soft, hard, medium hard, very hard formations

PDC cutter:1304, 1305, 1308, 1313, 1613, 1908, 1913, as required.

Material：Steel, carbide, diamond, PDC tools

Application：Water Well Drilling/Mining/Geological Drilling/Oil and Gas Extraction
