Shank Adaptor

  • Boart HD 155 TC35 shank adapters
  • Boart HD 155 TC35 shank adapters
Boart HD 155 TC35 shank adaptersBoart HD 155 TC35 shank adapters

Boart HD 155 TC35 shank adapters

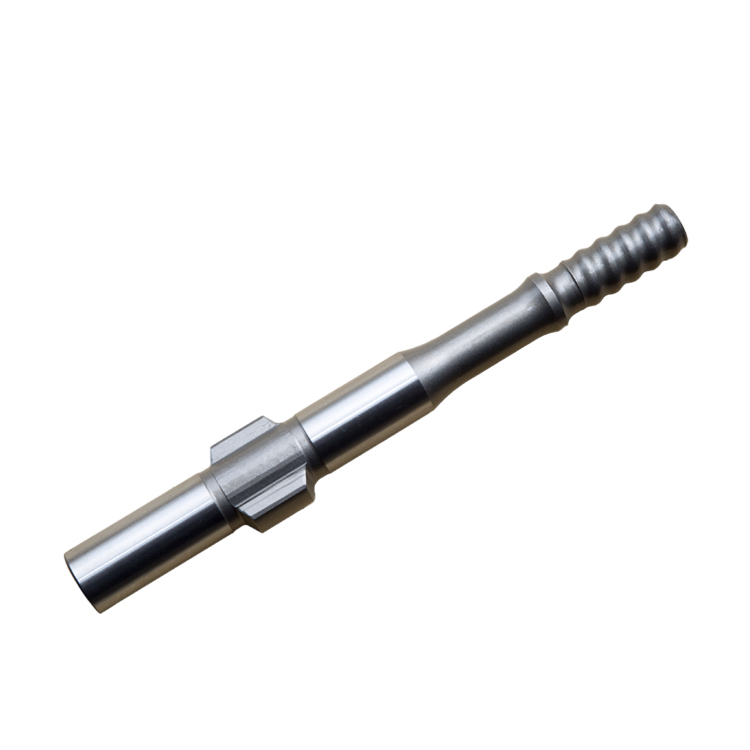

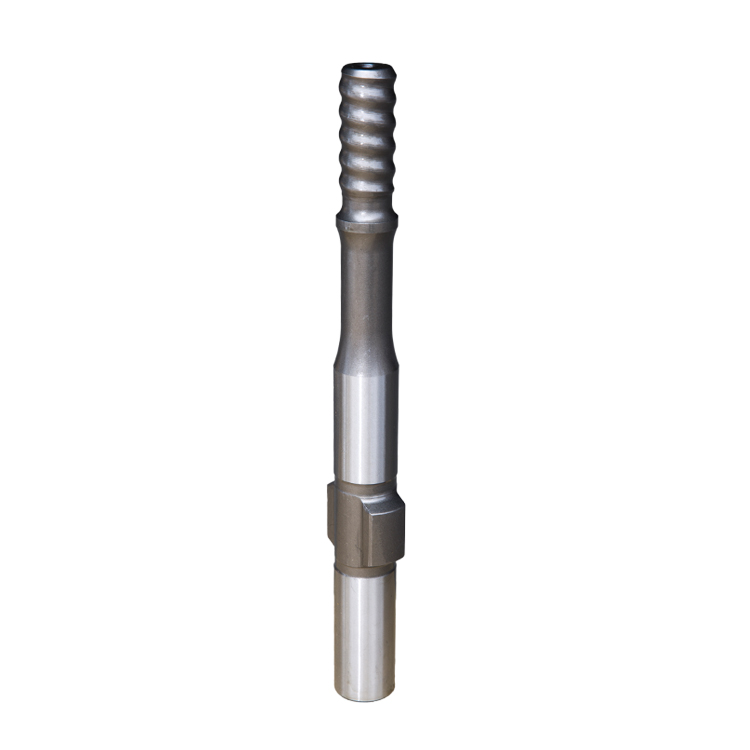

Boart HD 155 TC35 Shank adapters

In the drilling industry, there are many ways regarding the connections between different spare parts, for example, for taper drill rods and taper drill bits, taper degree is one way. While there is another way, that is by threads. This means different spare parts can be connected by threads. So we say shank adapters, couplings, extension rods, Threaded cross bits and threaded button bits belong to threaded drilling products. Shank adapter is used for transmitting power between drill machine and drill stems. One end is to connect drill machine, another end is to connect drill stems, by this way, the power from drill machine is transmitted to drill bits, finally the rocks are cut . In the world, there are different drill machines, so different shank adapters are available, like Atlas Copco, Tamrock, Ingersoll Rand,etc. Also for the same drill machine, due to different applications, the shank adapters can be different length and different threads. Our shank adapters are compatible with most popular drill machines in the world.


shank Adaptor

Drifter

Thread

length

Diameter

Weight

(mm)

(mm)

Appro* Kg

Atlas Copco

BBC42

T38

380

32

2.3

BBE57

T38

447

45

14.3

COP1038HL

T45

575

45

5.8

COP1238

R38

485

38

4.2

COP1838

T51

525

52

6.5

COP1840

T51

565

52

7.2

COP1850

T51

565

52

7.2

Furukawa

HD90

R38

515

40

4.3

HD190

T38

500

39.8

4.5

HD300

T45

654

44.7

6.7

HD612

T45

715

50.8

8.9

HD615

T51

700

57.8

11.7

Ingersoll Rand

YH45

T38

440

38

3.8

YH60A

T45

530

44.3

6.1

YH70

T45

500

45

5.5

YH80A

T51

500

51

6.4

YH110

T51

900

55

14.2

Tamrock

HL300

R32

400

32

2.6

HL500

R38

500

38

3.7

HL600

T38

600

45

6

HL700

T45

600

45

7.2

HL1000

T51

590

52

9.3

YOTO

TH501

T38

565

45

TH921

T45

750

45

TH950

T45

800

45
