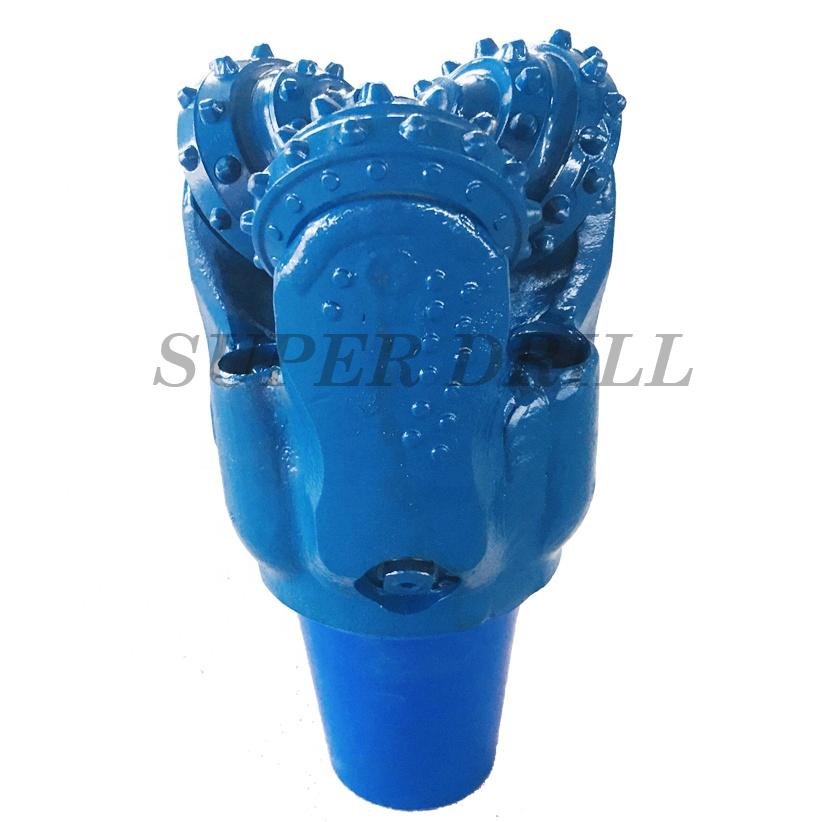

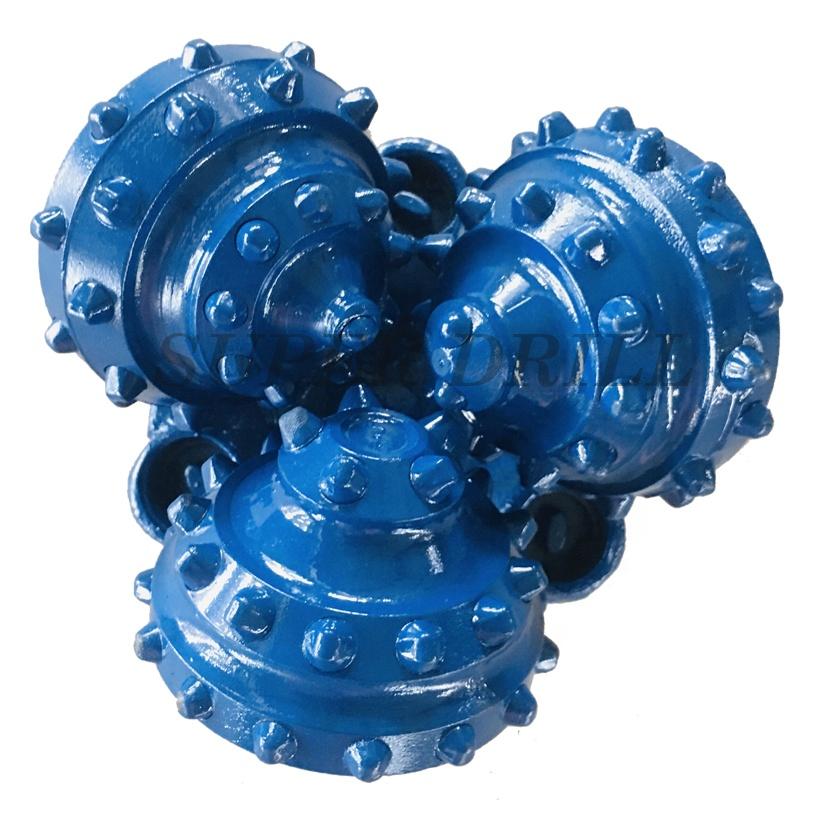

TCI Tricone Bit

  • 5 5/8 inch iadc 547 tci tricone bit
  • 5 5/8 inch iadc 547 tci tricone bit
5 5/8 inch iadc 547 tci tricone bit 5 5/8 inch iadc 547 tci tricone bit

5 5/8 inch iadc 547 tci tricone bit

  • Size of tricone bit 5 5/8 inch 171.5mm
  • Thread Connection 3 1/2 API reg pin
  • Single gross weight: 19.000 kg
  • Single package size: 19X16X32 cm
  • Product description: 5 5/8 inch iadc 547 tci tricone bit
  • INQUIRY Email Whatsapp

 5 5/8 inch iadc 547 tci tricone bit

Samples: IADC 537

$920.00/Piece | 1 Piece (Min. Order)

5 5/8 inch iadc 547 tci tricone bit
Basical Specification
Size of tricone bit
5  5/8" (142.9 mm)
Thread Connection
3 1/2" API reg pin
IADC CODE
537
Bearing type
rubber /metal o-ring journal bearing
Operating Parameters
WOB (Weight On Bit)
0.35~1.05 KN/mm (bit Dia.)
Rotary speed
110~40 r/min / 220~40 r/min
Make up torque
8.5~12.2 KN.M
Formation
Medium formation with high compressive strength ,and high drillability ,such as mudstone,gypsum,salt,soft limestone,etc.







PREVIOUS：6 3/4 inch 171.5mm IADC 537 tci tricone bitsNEXT：5 1/2 inch iadc737 tci tricone bit
