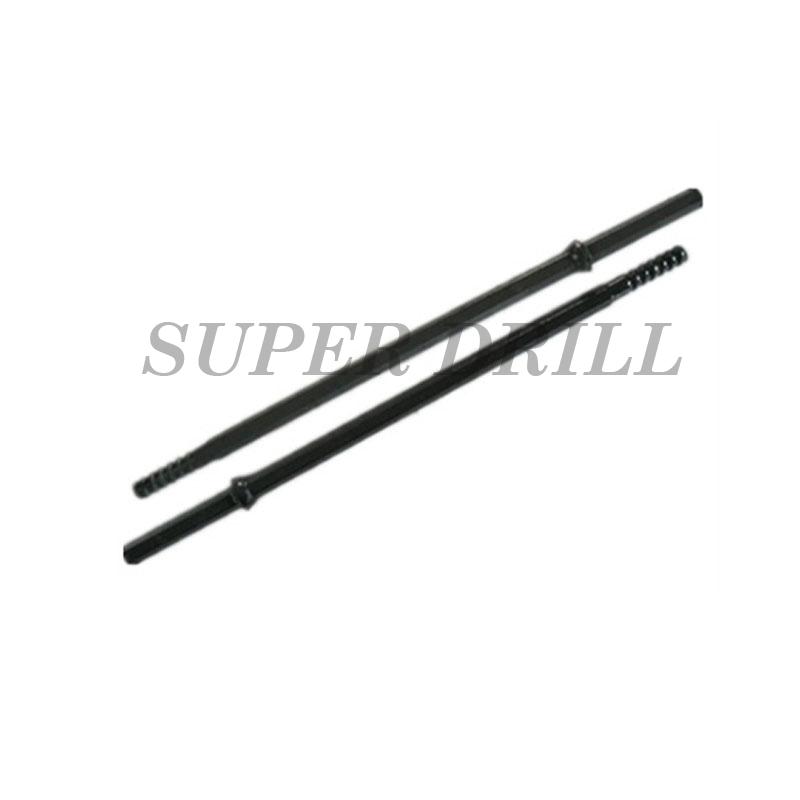

A light-duty rock drilling instrument called a Hexagonal shank rod, also known as a shank end rod, is mostly utilized with rail-type pneumatic rock drills. It is frequently utilized for mining blasting shallow holes, mine shafts, and small hole drilling in underground mine bolting holes.
Thread drill rod Made with best quality carbon steel bar,through heat treatment like Atlas.
Thread sizes: R22, R25,
Rods diameter: Hex.22mm, Hex.25mm,
Effective lengths:600mm ~ 3600mm;
|
Shank end rod |
length |
Diameter |
Weight |
Part No |
|
(mm) |
(mm) |
Appro* Kg |
||
|
|
22mm*108mm shank 22mm*108mm |
|||
|
610 |
22 |
2.6 |
SER0610H22R25 |
|
|
760 |
22 |
2.9 |
SER0760H22R25 |
|
|
1000 |
22 |
3.7 |
SER1000H22R25 |
|
|
1200 |
22 |
4.4 |
SER1200H22R25 |
|
|
1830 |
22 |
6.3 |
SER1830H22R25 |
|
|
2435 |
22 |
8.1 |
SER2435H22R25 |
|
|
3200 |
22 |
10.6 |
SER3200H22R25 |
|
|
3600 |
22 |
12 |
SER3600H22R25 |
|
|
25mm*159mm shank25mm*159mm |
||||
|
2700 |
25 |
11.3 |
SER2700H25R25 |
|
|
3200 |
25 |
13.7 |
SER3200H25R25 |
|
