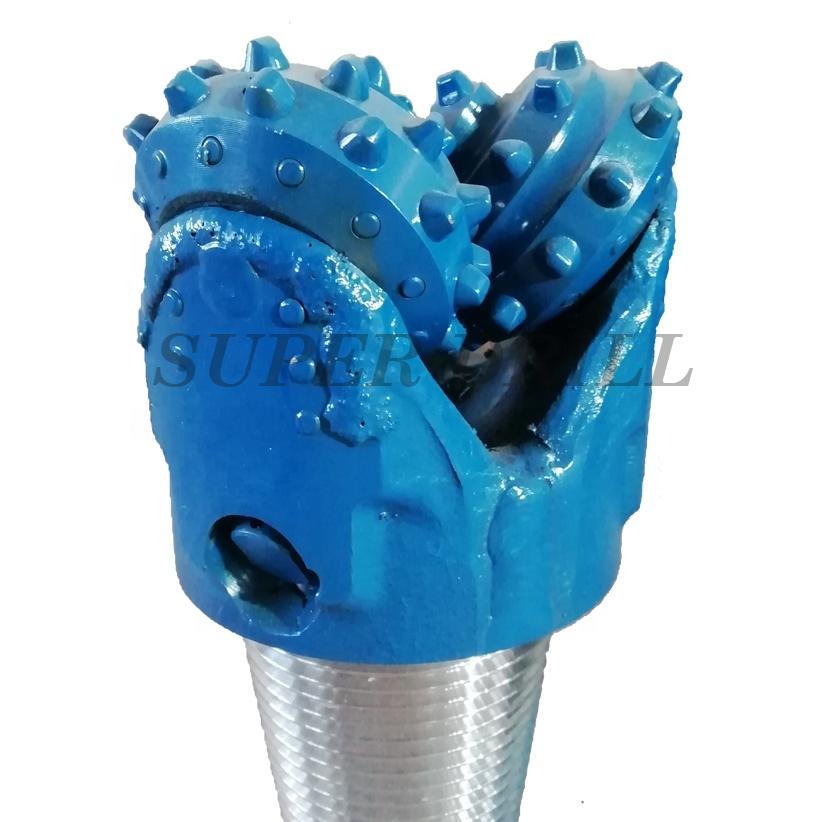

8 1/2 inch IADC 517 tci tricone drill bit
Samples: IADC517
$790.00/Piece|1 Piece (Min. Order)
| Size: | 8 1/2 Inch Tci Tricone Bit | IADC Code: | 517 |
|---|---|---|---|
| Connection: | 4 1/2"API Reg Pin | Nozzle Qty: | 3NZ |
| Make Up Torque(KN.m): | 16.3~21.7 | Rotary Speed(rpm): | 110~40 |
| Bearing Type: | Sealed And Non-sealed Bearing | Machine Type: | Water Well Drilling |
| Color: | Bule | ||
| High Light: |
tricone rock bit,tungsten carbide insert bit |
||
8 1/2" tci tricone drill bit
|
|
Basical Parameter | |
| Bit Size | 8 1/2"(215.9MM) | |
| IADC Code | 537 | |
| Connection | 4 1/2"API reg pin | |
| Nozzle Qty | 3NZ | |
| Make up Torque(KN.m) | 16.3~21.7 | |
| Operating Parameter | ||
| Rotary Speed(rpm) | 110~40 | |
| Weight on Bit(KN/MM) | 0.5~1.05 | |
| Formation | Low compressive strength,medium hard formation with dard abrasive interlayer,like Hard shale,anhydrite,soft limestone,sandstone,dolomite with mezzanine,etc. | |
