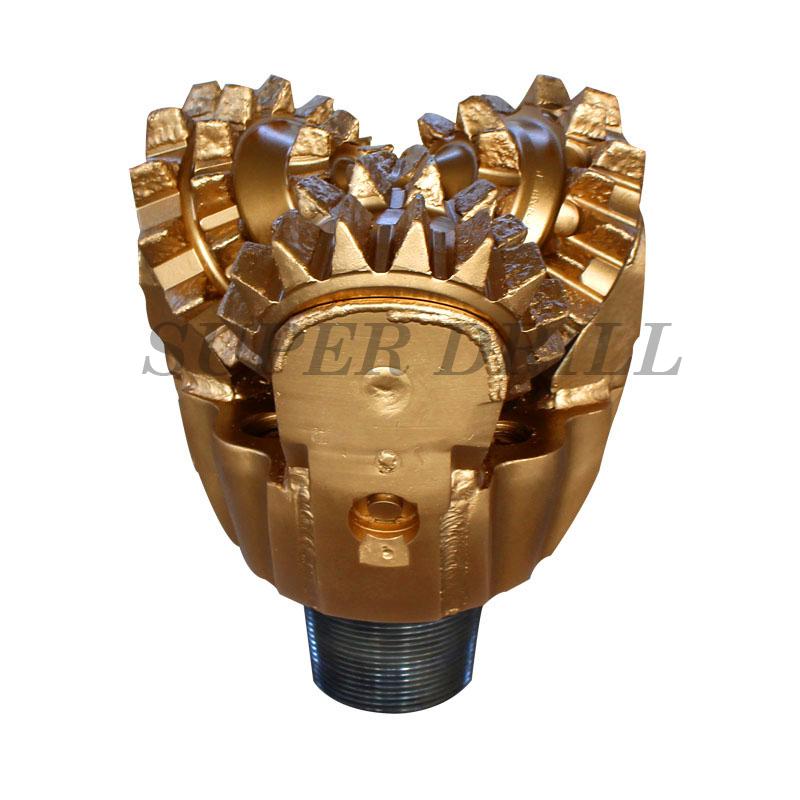

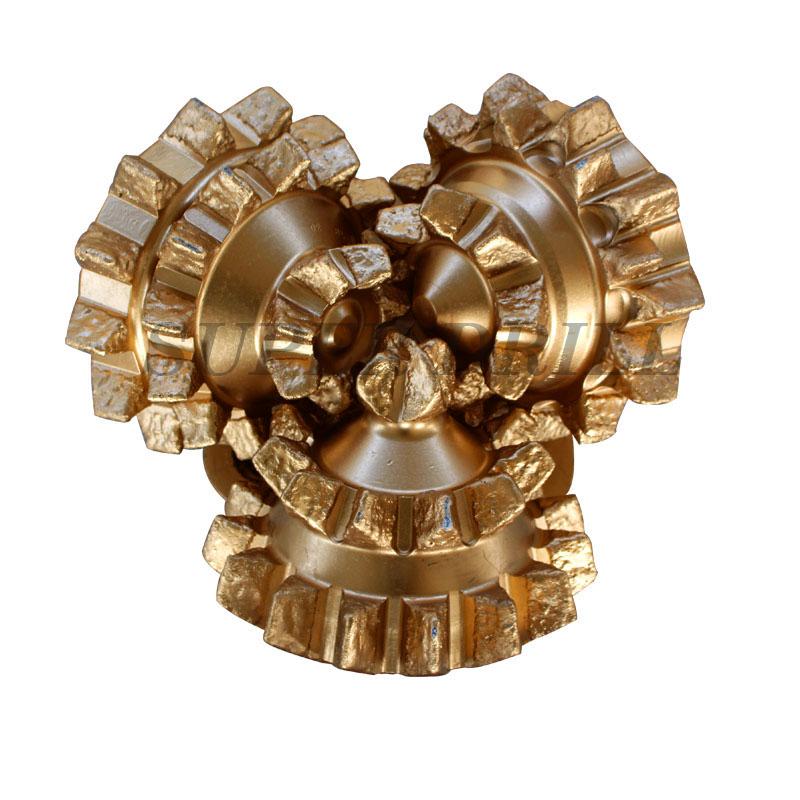

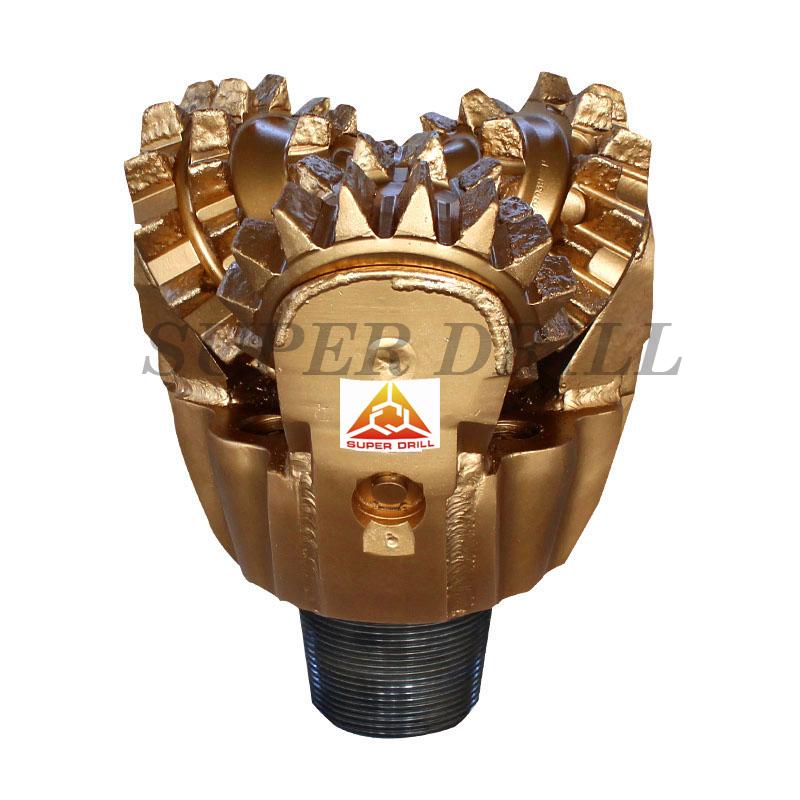

Name: 17 1/2" IADC 115 Steel Tooth tricone bit
NO.:SPD-115
Product description:Steel Tooth Tricone Bit，Elastomer sealed bearing for different applications.
Sizes range: 3 7/8 to 36 and customized according to drawings or requirements.
Certification:API &ISO:9001,compliant with IADC standard.
|
|
Basical Parameter |
|
|
Bit Size |
17 1/2"(444.5MM) |
|
|
IADC Code |
115 |
|
|
Connection |
7 5/8"API reg pin |
|
|
Nozzle Qty |
3NZ |
|
|
Make up Torque(KN.m) |
46.1~54.2 |
|
|
Operating Parameter |
||
|
Rotary Speed(rpm) |
180~60 |
|
|
Weight on Bit(KN/MM) |
0.3-0.75 |
|
|
Formation |
Very soft formation with low compressive strength ,and high drillability ,such as clay, mudstone,chalk,etc. |
|
