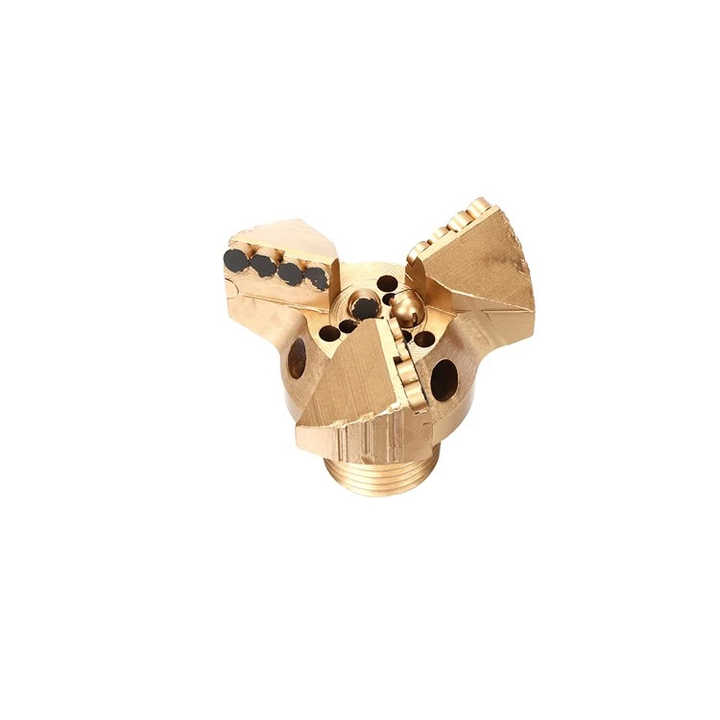

PDC drill bit is a kind of full-scale drilling bit, which is mainly used in coal mine, mining, geological exploration, water conservancy and hydropower, highway, railway, bridge and construction.
This drill bit is the first option to be applied in drilling complex formation with perfect stability, good drainage and fast penetration rate.
• Types: Ordinary type; Reinforced type; Super strength type.
• Threads: Any female or male threads.
PDC drill bit stands for Polycrystalline Diamond Compact which refers to the cutters on these drill bits.
PDC bits have exceptional rates of penetration when drilling and can out perform other bits in the right conditions.
The diamond cutters are 10 times stronger than steel but they are Brittle and can get damaged in discontinuous formations.
PDC bits love to drill through shale’s, salty clay stone, concrete and sands. Avoid gravel and sand stone.
PDC drill bit a are an excellent choice for expensive or very deep wells and particularly excel when drilling in soft to medium hard formations.
PDC drill bit can be constructed from steel bodies or matrix bodies.
You will get a deeper hole out of a Matrix Body but they cannot be repaired or retipped they may crack if the driller dynamically impacts the bit.
A steel body PDC bit is much tougher than a matrix body and will not crack. It will not drill quite as deep but it can be repaired and retipped.
When drilling with ProDrill PDC bits it is important to know and our instructions for the recommended weight on the drill bit and to control the rotational speed.
SUPERDRILL drilling tools can supply PDC bits in sizes from 3.5” (88.9mm) to 12-1/4” (311.2 mm). Our PDC bits have 3 to 6 wings, Jet Nozzles and gauge protection.
SUPERDRILL also Builds PDC bits for RC drilling (reverse circulation drilling) applications.
Specification:
|
Model |
Diameter(mm) |
PDC cutter types |
Blade No. |
Suitable rock formation |
Operation mode |
|
PD42NA |
42 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3 |
Soft, medium, medium-hard |
Cutting |
|
PD56NA |
56 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3 |
Soft, medium, medium-hard |
Cutting |
|
PD60NA |
60 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3 |
Soft, medium, medium-hard |
Cutting |
|
PD65NA |
65 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3 |
Soft, medium, medium-hard |
Cutting |
|
PD75NA |
75 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3 |
Soft, medium, medium-hard |
Cutting |
|
PD80NA |
80 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3 |
Soft, medium, medium-hard |
Cutting |
|
PD85NA |
85 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3 |
Soft, medium, medium-hard |
Cutting |
|
PD90NA |
90 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3 |
Soft, medium, medium-hard |
Cutting |
|
PD94NA |
94 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3/4 |
Soft, medium, medium-hard |
Cutting |
|
PD98NA |
98 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3/4 |
Soft, medium, medium-hard |
Cutting |
|
PD100NA |
100 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3/4 |
Soft, medium, medium-hard |
Cutting |
|
PD113NA |
113 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3/4 |
Soft, medium, medium-hard |
Cutting |
|
PD120NA |
120 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3/4 |
Soft, medium, medium-hard |
Cutting |
|
PD133NA |
133 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3/4 |
Soft, medium, medium-hard |
Cutting |
|
PD153NA |
153 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3/4 |
Soft, medium, medium-hard |
Cutting |
|
PD171NA |
171 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3/4/5 |
Soft, medium, medium-hard |
Cutting |
|
PD191NA |
191 |
Plane PDC, Cambered face PDC, GK PDC, ZX PDC |
3/4/5 |
Soft, medium, medium-hard |
Cutting |
