Hand hold type

  • Y18/YO18 hand held rock drill
  • Y18/YO18 hand held rock drill
Y18/YO18 hand held rock drillY18/YO18 hand held rock drill

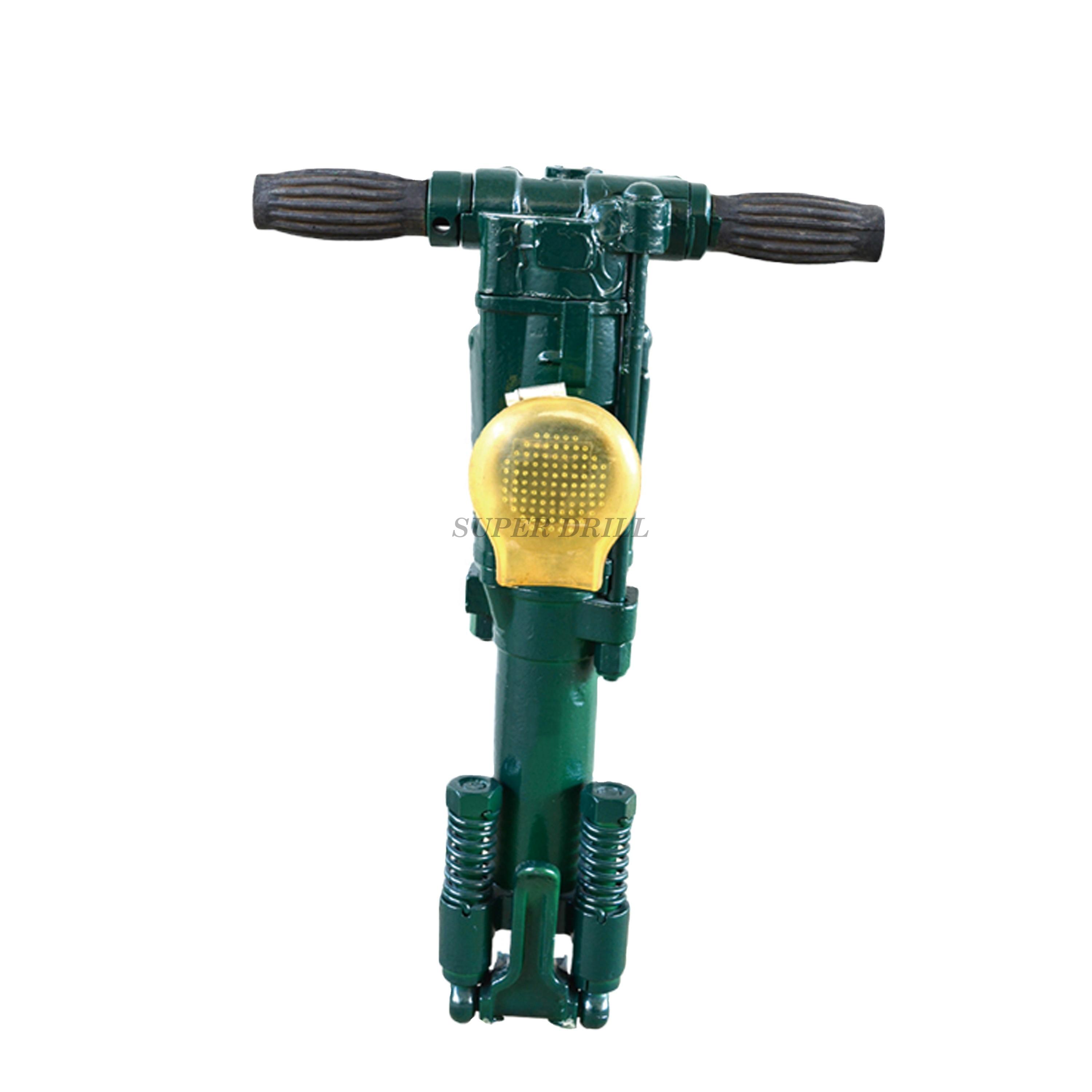

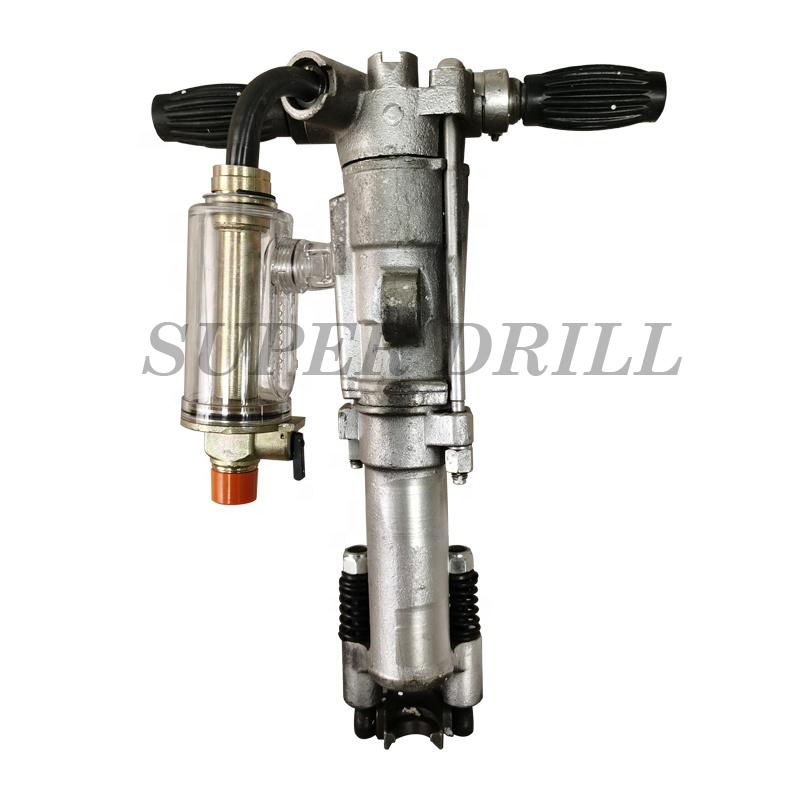

Y18/YO18 hand held rock drill

  • Model Number: Y18
  • Type: rock drill
  • Average Air Consumption: 1.3m3/min
  • Length: 550 mm
  • Product description: Y18 rock drill is a kind of hand-held and air-leg double-duty rock drill. When held in hand, it can drill in all directions flexibly. As air-leg rock drill, it can be matched with air leg FT100 to dri
  • INQUIRY Email Whatsapp

Y18 rock drill is a kind of hand-held and air-leg double-duty rock drill. When held in hand, it can drill in all directions flexibly. As air-leg rock drill, it can be matched with air leg FT100 to drill horizontal and inclined blast holes efficiently.


Y18 rock drill is suitable for drilling blast holes in soft, medium and hard rocks. It can be matched with the air compressor W-1.5/4, W-1.8/5, and W-2/5,etc. It is widely used in mining, water conservancy, prospecting, quarrying, highway, transportation and national defense projects.



Air consumption
1.3 m³/min
Pipe Diameter
19mm
Air Pressure
0.35-0.5Mpa
Water Pressure
≤ Air Pressure
N.W/ Length
18KG / 550MM
Water Pipe Diameter
8m
Piston diameter
19mm
Piston stroke
45 mm
Y18 hand held gas leg dual purpose rock drilling
