Pneumatic breakers

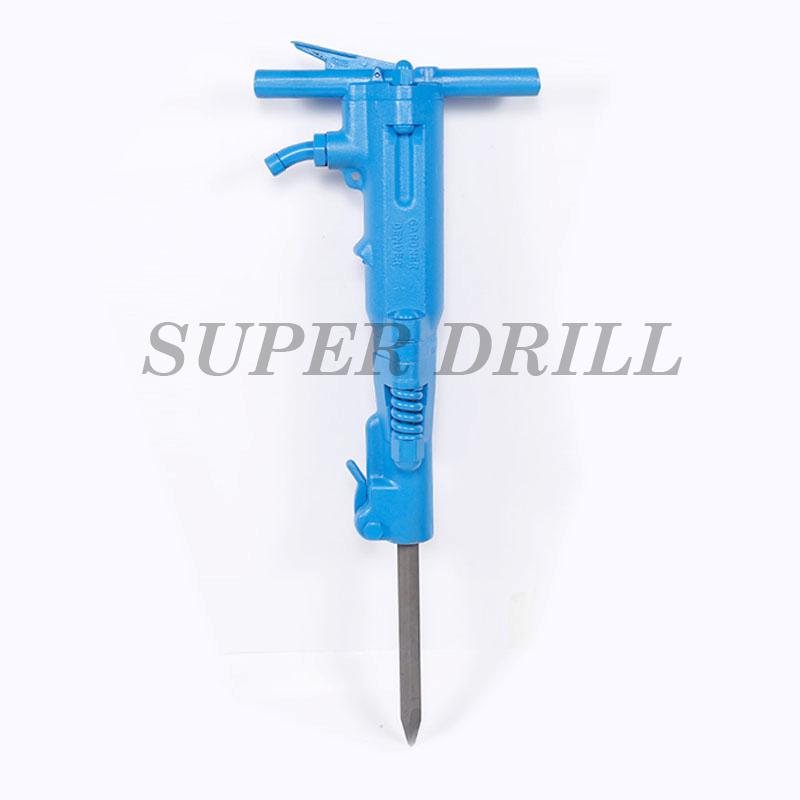

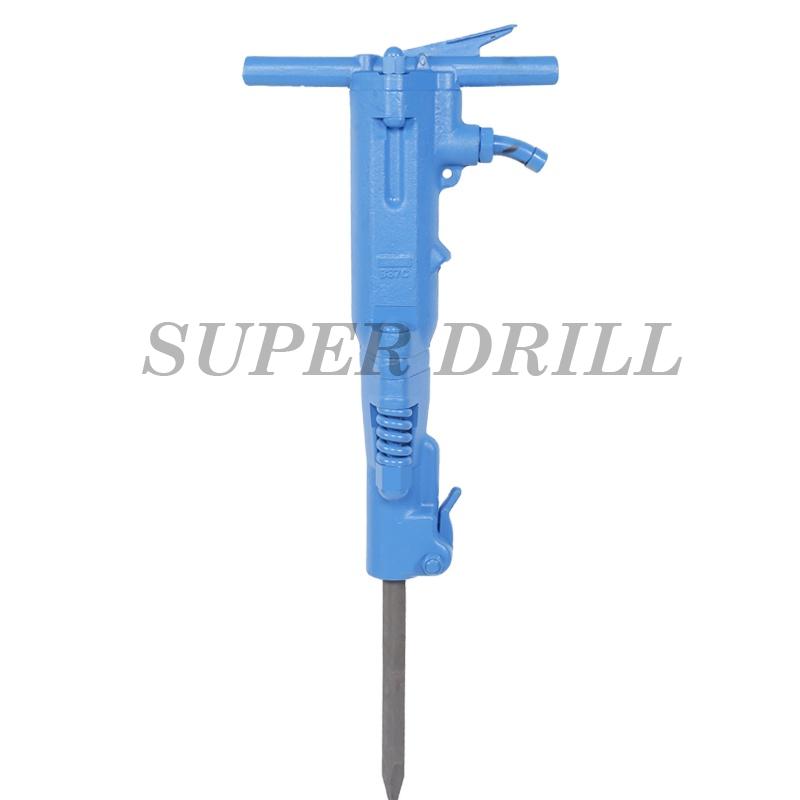

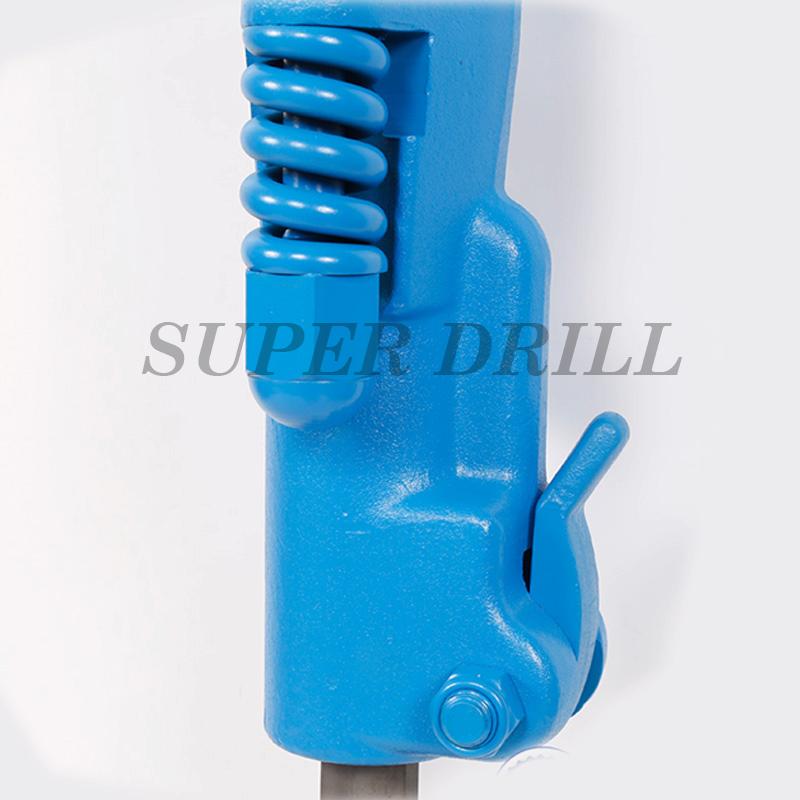

Pneumatic Breaker B87C

Type: Air Hammer
Name: B87C pneumatic hammer
Average Air Consumption: 55 L/s max
Application: backout of mines bridges, roads, water pipes
Product description: Weight:39kg | Length:688mm | Impact energy:100J±10% |The pneumatic breaker B87C is manufactured using mature technology introduced from Gardner Denver.
INQUIRY Email Whatsapp

The pneumatic breaker B87C is manufactured using mature technology introduced from Gardner Denver. It makes use of compressed air to effectively break rock, asphalt, ice, frozen ground, reinforced concrete and so on, and it is characterized by light weight, high efficiency and excellent durability.

Application
1. Mining industry: Cutting out coal bed and crushing soft ore
2. Open pit: Digging claystone and soft rock
3. Civil engineering: Breaking frozen ground and digging though/under maintains
4. Others: Breaking ice, concrete, etc.

Technical Data of Pneumatic Breaker B87C

Weight	39kg
Length	688mm
Working pressure	0.63Mpa
Impact energy	100J±10%
Impact power	1.8kW±10%
Impact frequency	1.8Hz±10%
Air consumption	55L/s±5%
ID of air hose	19mm
Shank size	32×152mm
