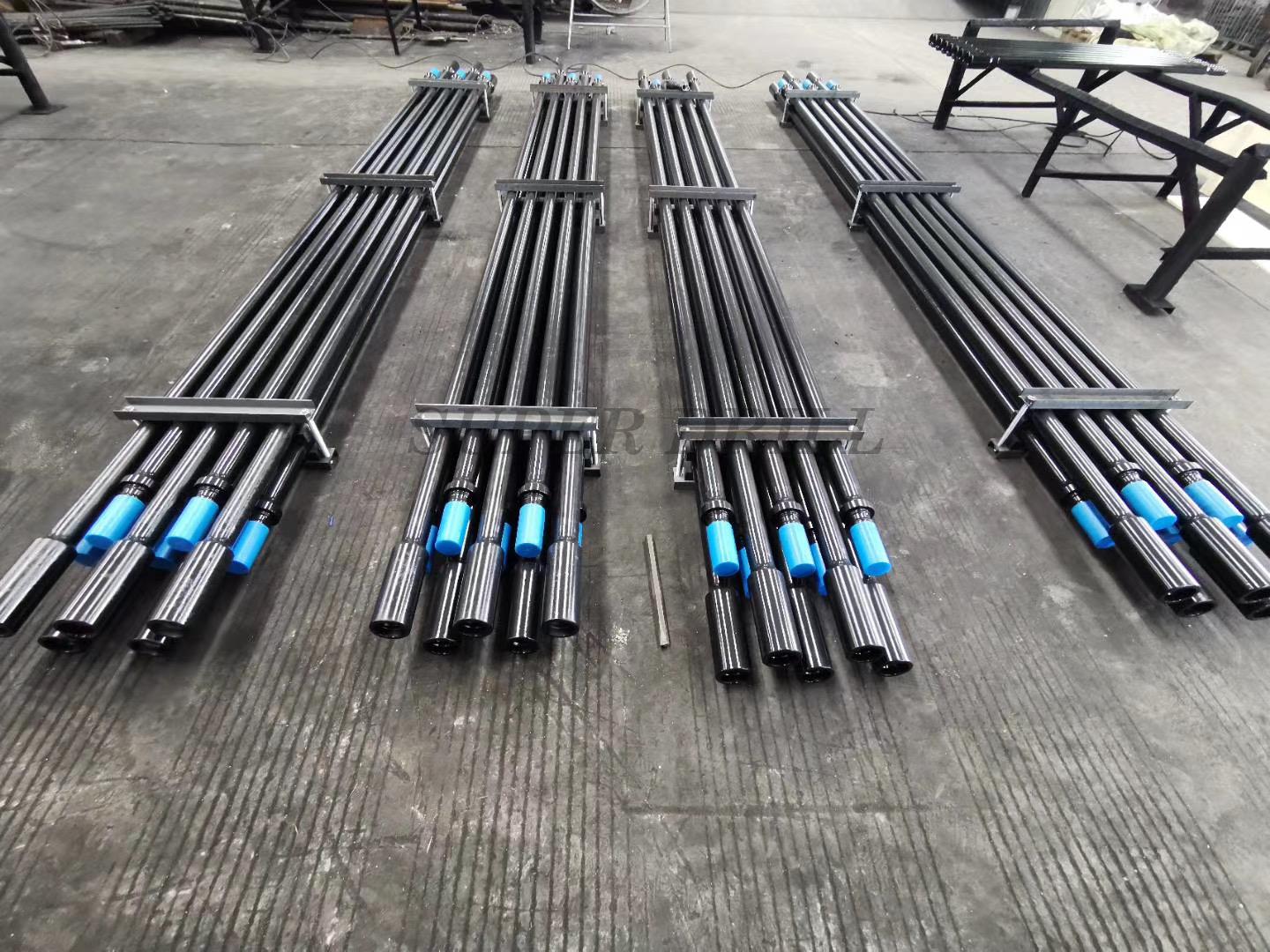

GT60 Extension Rod Specification
Applications:
• Underground mining
• Tunneling,quarrying
• Widely used in benching, and long hole drilling
| Dimensions | ||||
|
Length mm |
Length ft |
Diameter mm |
Diameter in |
Part Number |
| 3660 | 12 | 60 | 2 3/8" | 4148301800 |
| 4265 | 14 | 60 | 2 3/8" | 4148301801 |
| 6095 | 20 | 60 | 2 3/8" | 4148301802 |
| 4265 | 14 | 64 | 2 1/2" | 4148301803 |
| 4265 | 14 | 87 | 3 1/2" | 4148301804 |
| 5335 | 17 | 76 | 3" | 4148301805 |
GT60 Drill bits specification
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | Part Number | ||
| mm | Front | Gauge | Front | Side | kg | |
| 102 | 6x14 | 8x14 | 2 | - | 8.7 | 4148301806 |
| 105 | 6x14 | 8x14 | 2 | - | 8.9 | 4148301807 |
| 110 | 6x14 | 8x16 | 2 | - | 9.4 | 4148301808 |
| 115 | 6x14 | 8x16 | 2 | - | 9.6 | 4148301809 |
| 127 | 4x14, 3x14 | 8x16 | 4 | - | 10.8 | 4148301810 |
| 152 | 8x14 | 9x16 | 3 | - | 16.2 |
4148301811 |
