General Introduction:

The Double Head Casing Drilling Systems add flexibility to drilling in varying conditions. During drilling, water or compressed air are used as medium, and the discharge head makes the casing tube and drill rod rotate and penetrate. In addition to the benefits of increased flushing control, the inner and outer strings are able to be separately controlled, which greatly increases control over drilling operation. For deeper borehole applications the double casing drilling tools allows for a dual string drilling system with internal flushing, which maximizes the precision to target. The Double Casing Drilling method reduces risk, project time and produces optimal results. It can be widely used in drilling for grouting holes in projects such as cofferdam, foundation and geothermal well and etc..

Superdrill offers a full range of Double Head Casing Drilling Systems designed for specific drilling applications. They could be utilized in rotary-percussive mixed drilling or pure rotary only drilling.

Specification Overview:

Drill Bits:

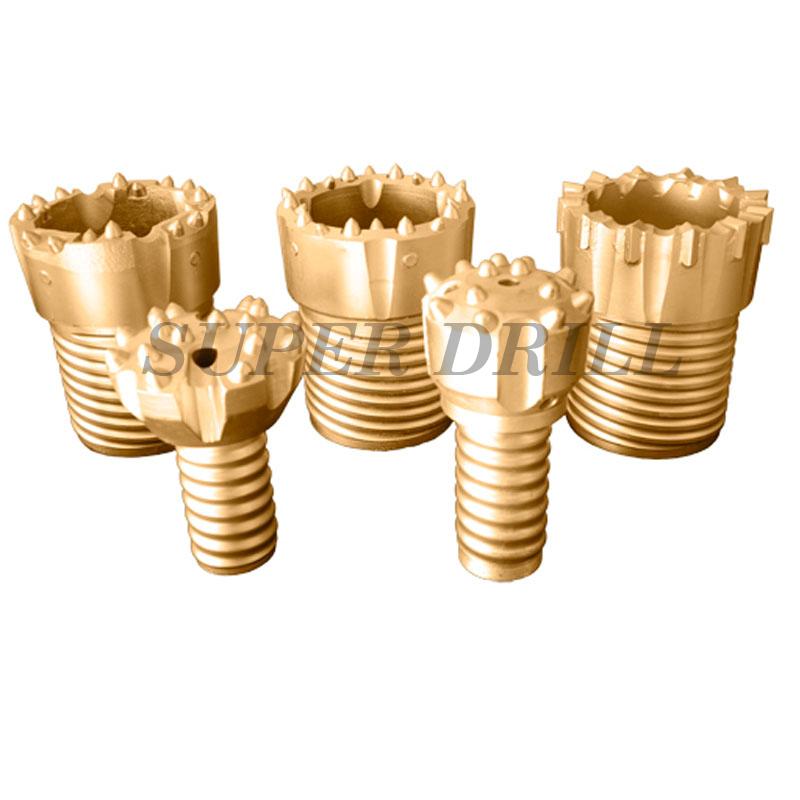

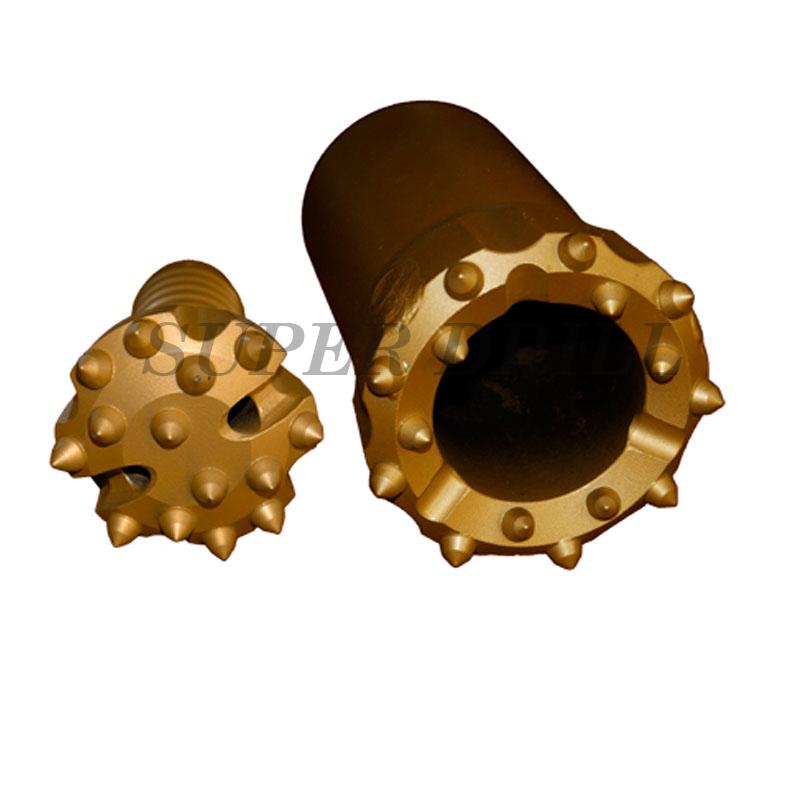

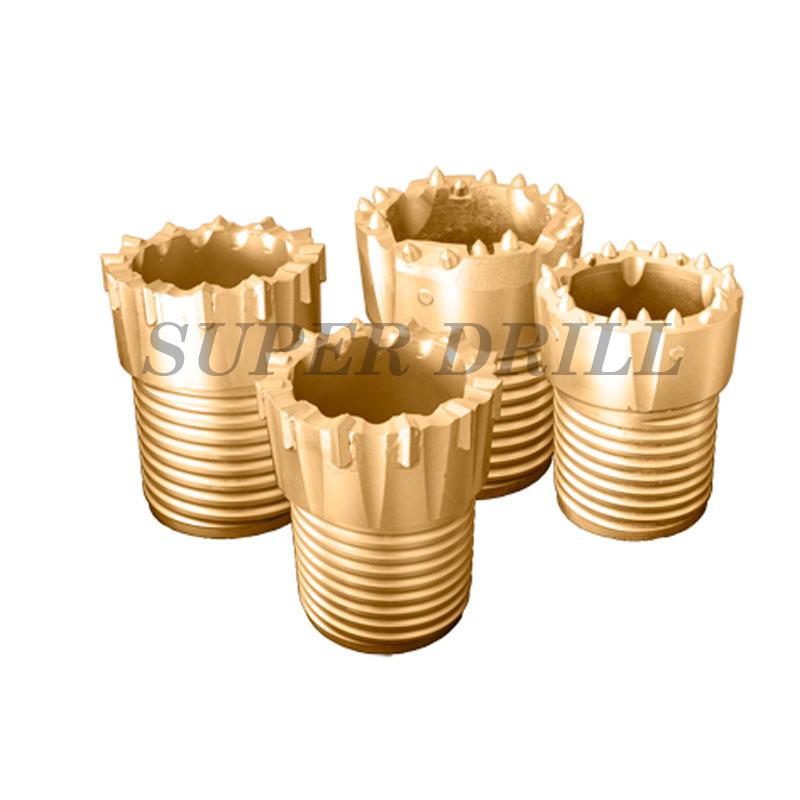

Crown Ring Bits

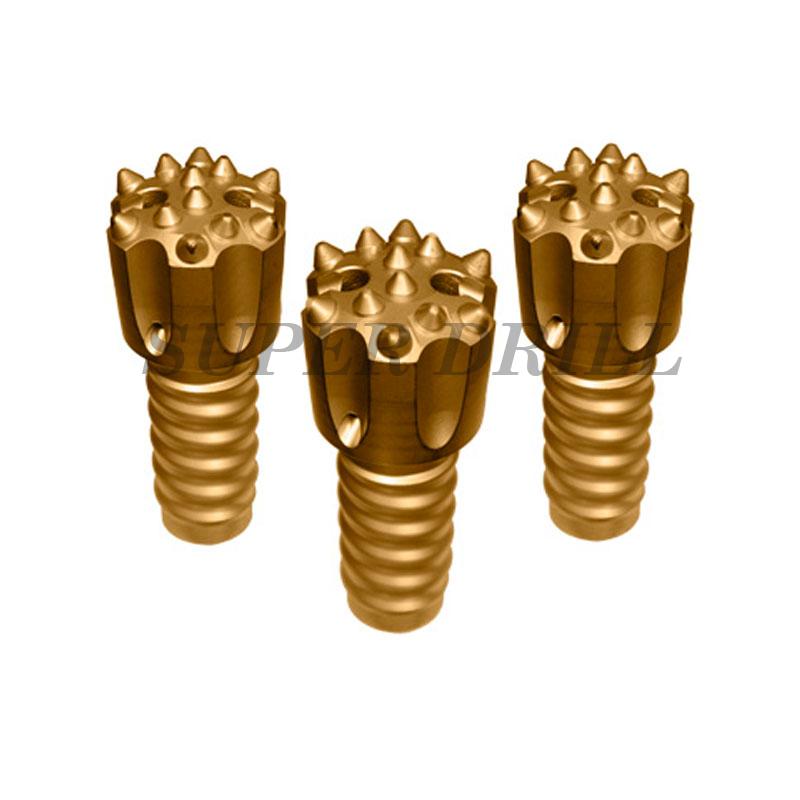

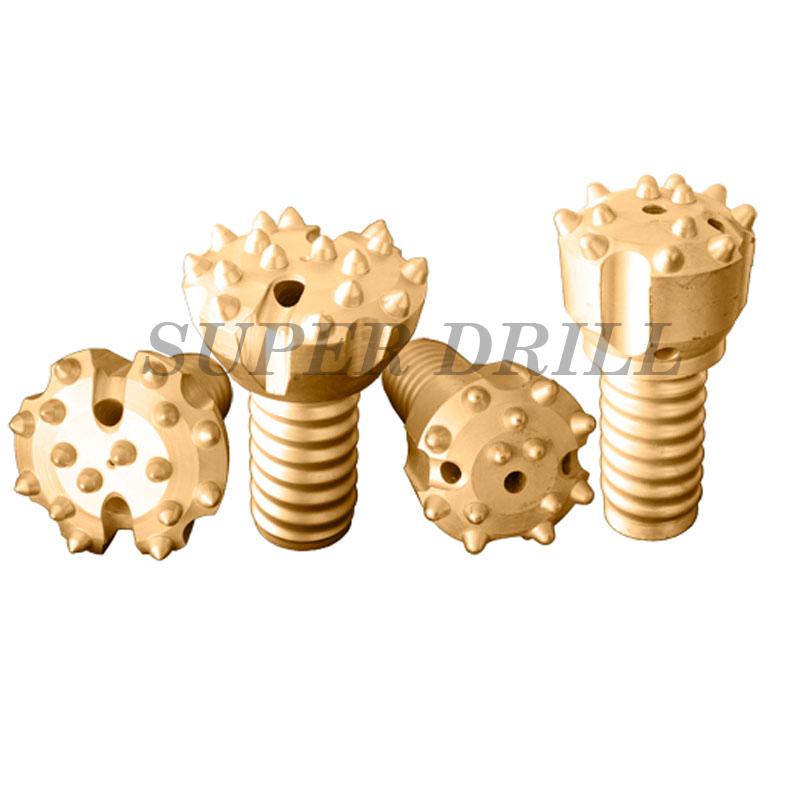

Inner Bits

Casing OD

Bit OD

Thread

Bit Diameter

Thread


mm

inch

mm

inch

mm

inch

118

4 5/8

125

4 15/16

T104.2

83, 85

3 1/4, 3 3/8

R56×12.7


133

5 1/4

140, 142

5 1/2, 5 5/8

T122

99,102

3 7/8, 4

R56×12.7

133

5 1/4

152

6

T122

116

4  9/16

R78×22.56

146

5 3/4

155

6 1/8

T134

115

4 1/2

R56×12.7

165

6 1/2

172

6 3/4

T146.5

128

5  1/16

R83×22.56

168

6 5/8

175

6 7/8

T153.9

127

5

R56×12.7

216

8 1/2

225

8 1/4

T203

165

6 1/4

R120×22.56


Tool Joints:

Denomination

Outside Diameter

Effective Length

Tool Joint

73~168mm

50~100mm

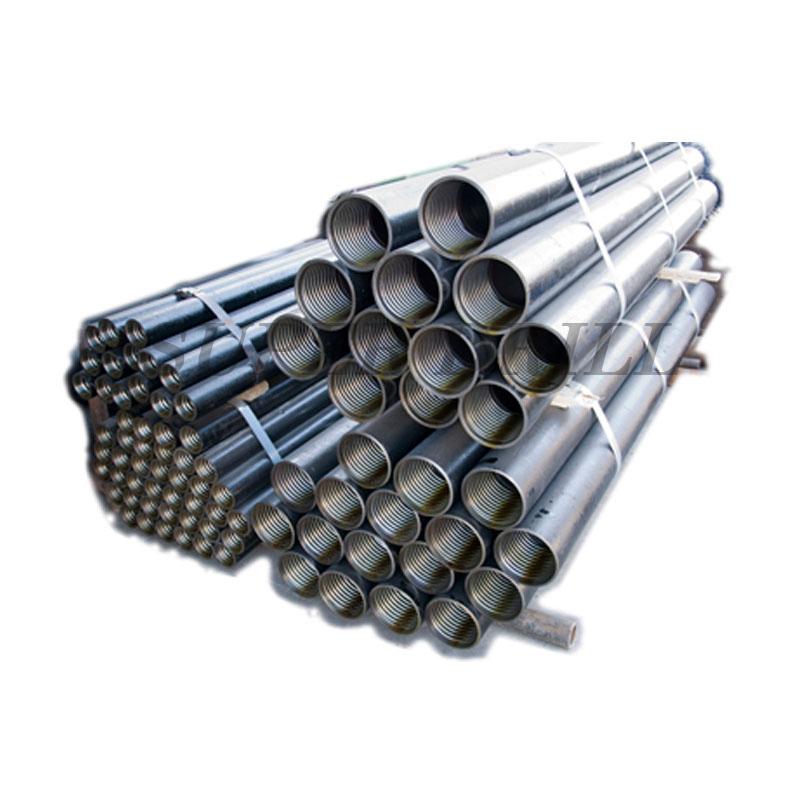

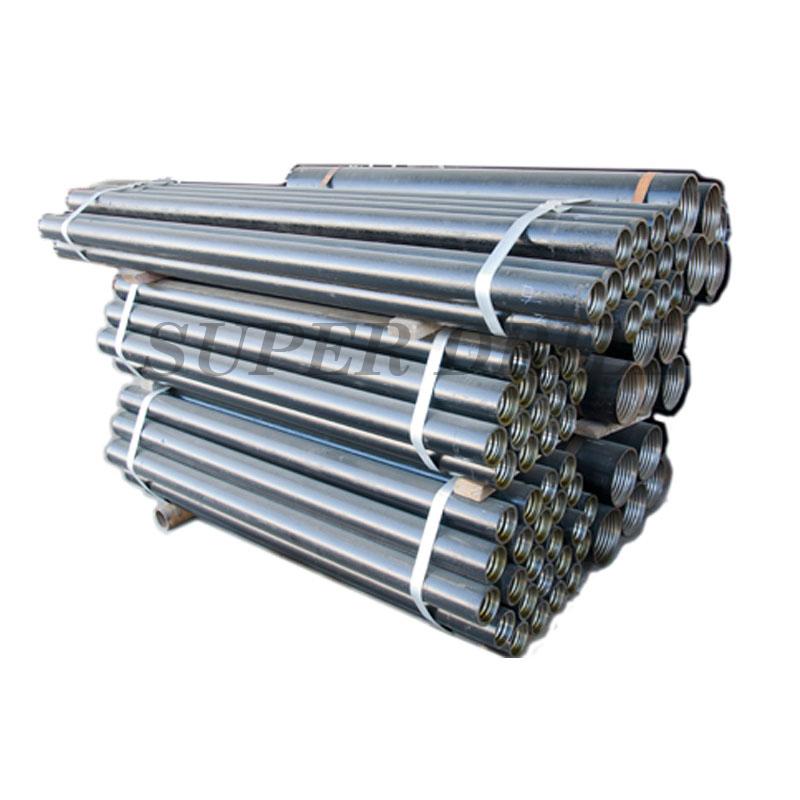

Drill Pipes / Casing Tubes:

Denomination

Outside Diameter

Effective Length

Wall Thickness

Outer Tube

136~168mm

950~1950mm

10~11mm

Inner Tube

50~89mm

950~1950mm

10mm

How to order?

Crown Ring Bits: Casing OD + Bit OD + Thread Size

Inner Bits: Bit Diameter + Thread Size

Tool Joints: Diameter + Length + Thread Size

Outer/Inner Tubes: Diameter + Length + Wall Thickness + Thread Size
