Hole Opener/Reamer

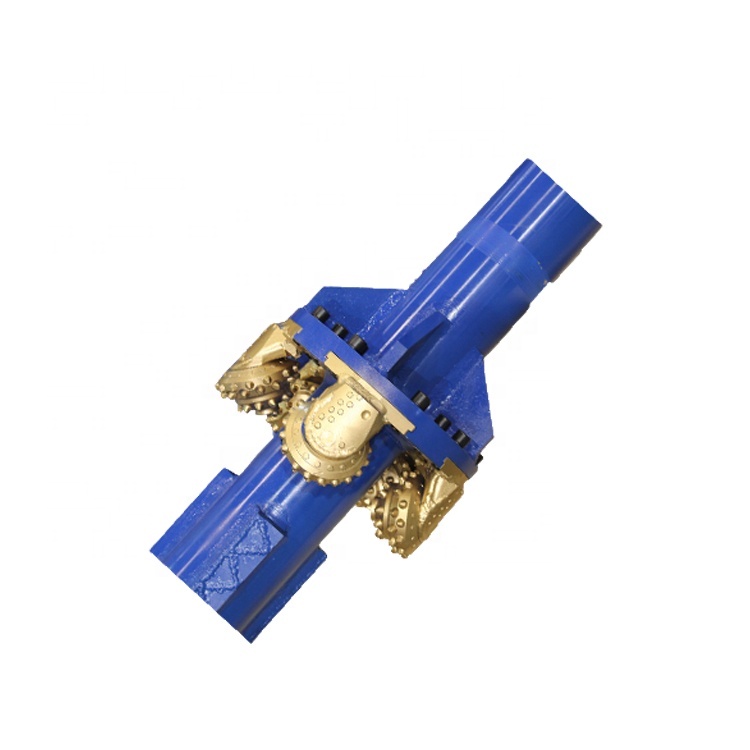

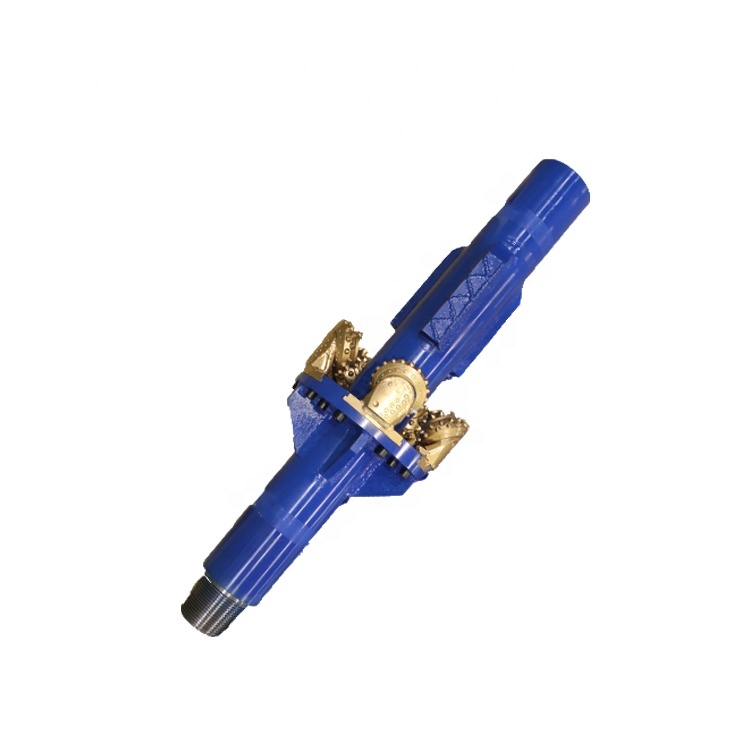

10 inch Tci tricone bit cutters HDD Rock Reamer

Size: 10 inch
Length: 1100mm
2 3/8 IF Pin&Box
Formation: Soft-medium Hard Formation
Product description: 10 inch Tci tricone bit cutters HDD Rock Reamer/Hole Opener for trenchless
INQUIRY Email Whatsapp

10 inch Tci tricone bit cutters HDD Rock Reamer

Basical Specification
Size	10 inch
IADC code	537G
Thread Connection	2 7/8 IF Pin&Box
Length	1100mm
Cutter Size	6 inch
Bearing Type	Rubber Sealed
Operating parameter
RPM(r/m)	120~50
WOB(KN/mm)	0.45~1.0
Formation	medium soft with low compressive strength and harder abrasive stringers,such as hard shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc.

Type:DRILL BIT
Machine Type:Drilling Tool
Material:High Manganese Steel
Processing Type:Forging
Use:Well Drilling
Local Service Location:United States, India, Malaysia, Argentina, South Korea, Algeria, Ukraine
Certification:API
Product name:Horizontal Directional Drill
Size:10"
Application:Construction
Color:Blue
Length:1100mm
Formation:Soft-medium Hard Formation
Thread:2 3/8 IF Pin&Box
Packing:Wooden Case
